ROTATOR PARTS

COMMON:- Parts, Accessories & Hardware.



CLICK MANUFACTURES LOGO BELOW FOR SELECTED PARTS.

alinco plus.jpg - 8.61 Kb

logo



logo



logo

cde-hygain.jpg - 7.95 Kb

Logo

yaesu 93x20.jpg - 3.97 Kb

The below 6 pics are just a pic gallery.

PLEASE SCROLL DOWN FOR A COMPLETE PARTS LIST.



Kur02 page updated 18/07/2024



 PayPal Logo



Click For PURCHASING Details

PayPal Logo



Buy now with PayPal



All prices are in Australian Dollars (AUD) & includes GST.



 Click for SALES & To CONTACT Duoro Services



I ALSO SERVICES, REPAIR, REFURBISH & UPGRADE YOUR ROTATORS.



 Click for Rotator Manuals



 Click For Rotator Comparison Tables





I Have Lots Of Spare Parts Available Not All Are Listed Below, Please Contact Me, I May Have What You Need In Stock Or Within A Rotator Or Controller For Spare Parts.





COMMON:- PARTS, ACCESSORIES & HARDWARE

 $...AUD
.Qty..  Manufacture  Image & Part Number  Description

 $..m

 TOTAL
per m



AUSTECH Wire & cable P/L

ART72603





 Cable7c1.84



NEW 7 core Rotator cable Low Loss

 7 core 1.84mm sq. 26x0.30mm

 For Long runs & Rotator with solenoid brakes

 (NOT .50mm sq like standard rotator cable, only good for 25m max.)

 10.6mm(Nominal OD) with black UV stable sheath.

 7 coloured wires.

 A MUST FOR RUNS OF MORE THAN 50m

 Also available in HD 5 core, See Below.



$ 6.50 Per m
20m $ 6.30 $ 126.00

30m

Roll

$ 6.25 $ 187.50
40m $ 6.15 $ 246.00
50m $ 6.00 $ 300.00
75m $ 5.95 $ 446.25

100m Roll

$ 5.90 $ 590.00
.Qty Manufacture  Image & Part Number ..Description  $..m.  TOTAL
Per m



ELECTRA

Cables

ECA45

&

AUSTECH Wire & cable P/L

ART52603





 Cable5c1.84

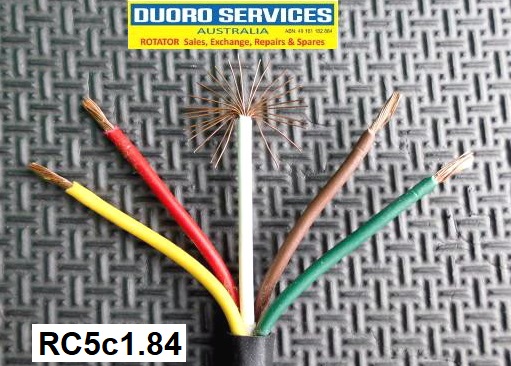

NEW 5 core Rotator cable Low Loss

 5 core 1.84mm sq. 26x0.30mm

 For Long runs & Rotator with solenoid brakes

 (NOT .50mm sq like standard rotator cable, only good for 25m max.).

 With black UV stable sheath.

 5 coloured wires.

 A MUST FOR RUNS OF MORE THAN 50m


$ 4.90 per m
20m  $ 4.80 $   96.00
30m  $ 4.75 $ 142.50
50m $ 4.65 $ 232.50
75m  $ 4.55 $ 341.25

100m

Roll

$ 4.50 $ 450.00
.Qty Manufacture Image & Part Number ..Description $..m. TOTAL
Per m



ELECTRA

Cables

ECA37

&

AUSTECH Wire & cable P/L

ATR71603

&

KEY (KTE)

KA7TR300







 Cable7c0.92

 &

 Cable7c1.13

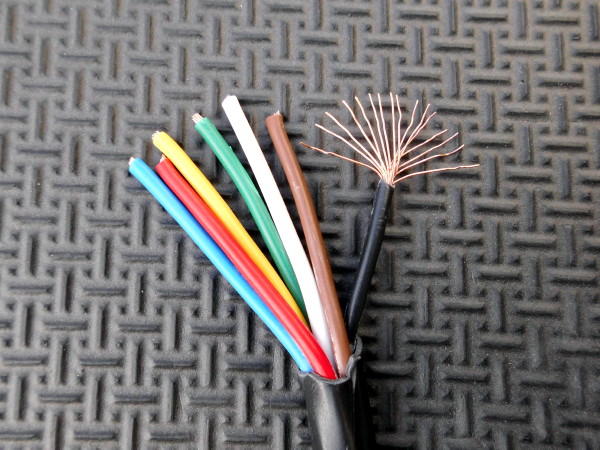

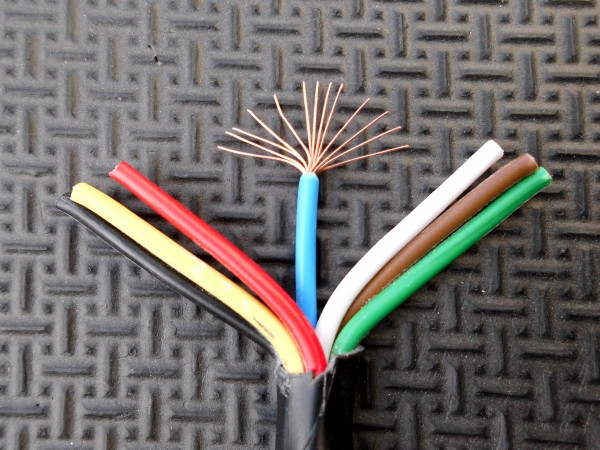

NEW MD 7 core Rotator cable

 Available three sizes, depending on what I have in stock, all the same price.

(ELE) 7 core 0.92mm sq. 13x0.30mm

(AUS)7 core 1.13mm sq. 16x0.30mm

(KEY) 7 core 1.13mm sq. 14x0.32mm

 Not recommended for rotator with solenoid brakes with runs of more than 20m.

8.4mm (Nominal OD) with black UV stable sheath.

7 coloured wires

 FOR RUNS UP TO 50m



 Also Available in MD 5 core From AUSTECH wire & ELECTRA Cables, SEE BELOW.

$ 4.50 Per m
20m $ 4.30 $   86.00

30m

Roll

$ 4.25 $ 127.50
40m $ 4.15 $ 166.00
50m $ 4.00 $ 200.00
75m $ 3.95 $ 296.25

100m

Roll

$ 3.90 $ 390.00
.Qty  Manufacture  Image & Part Number  Description  $ m  TOTAL
Per m



ELECTRA

Cables

ECA35

  &

AUSTECH Wire & cable P/L

ART51603

  Cable5c0.92

          &

  Cable5c1.13

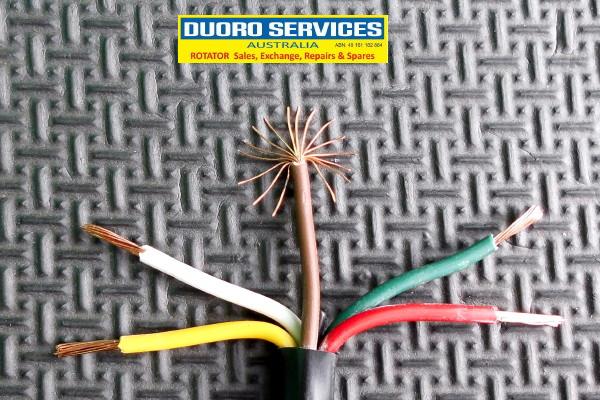

NEW MD 5 Core Rotator Cable

Available two brands, depending what I have in stock, both the same price.

(ELE) 5 Core 0.92mm Sq. 13x0.30mm

(AUS) 5 Core 1.13mm Sq. 16x0.30mm

FOR RUNS UP TO 50m

$ 3.80 Per m
20m $ 3.70 $  74.00

30m

Roll

$ 3.60 $ 108.00
40m $ 3.50 $ 140.00
50m $ 3.40 $ 170.00
75m $ 3.30 $ 247.50
100m Roll $ 3.20 $ 320.00

Qty In

Stock

Manufacture  Image & Part Number  Description  $ ea.  TOTAL
 1 DUORO

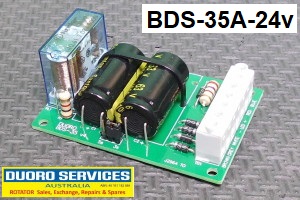

 BDS-35A-24v



NEW & IMPROVED.

Brake Delay PCB for :- Kenpro KR-2000 & KR-2000RC,

Also for CDE/HyGain Ham series + TailTwister (T2X) controllers.

This is the 24v AC version PCB.

Includes:-

Selectable 3 or 5 second delay via jumper link.

16 Amp DPDT relay & 7 way 16 amp PCB mount terminal block.

No soldering needed onto the PCB.

Also includes brake action LED output.

Plus can also be configured as an AUTO BRAKE RELEASE, controlled via the direction switches, NO BRAKE SWITCH NEEDED.

L 72mm x W 49mm x H 27mm.

I can do the upgraded for you , please contact me for a price.

$69.ea
 1 DUORO



 BDS-35A-100v



NEW & IMPROVED.

Brake Delay PCB for EMOTATOR 1102/3 MSA & MX etc  controllers.

This is a 100v  AC version PCB.

Includes:-

Selectable 3 or 5 second delay via jumper link.

16 Amp DPDT relay & 7 way 16 amp PCB mount terminal block.

No soldering needed onto the PCB.

Also includes brake action LED output.

Plus can be configured as an Auto Brake Release, controlled via the direction switches, No brake Switch needed.

L 72mm x W 49mm x H 27mm.

I can do the upgraded for you , please contact me for a price.



$69.ea


 20

Cosmos

 POT-500N

RA25Y20s

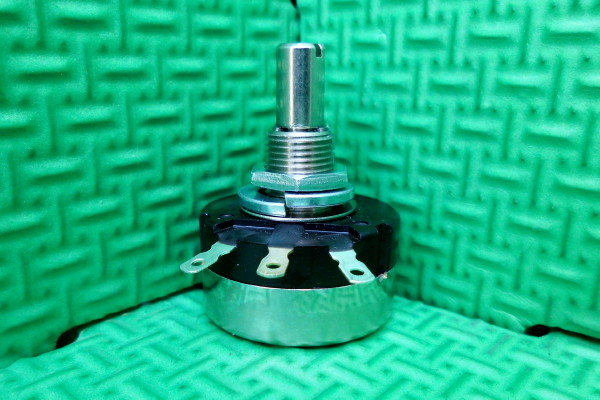

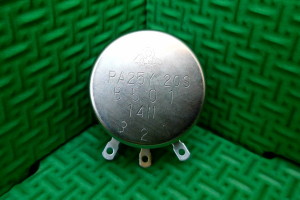

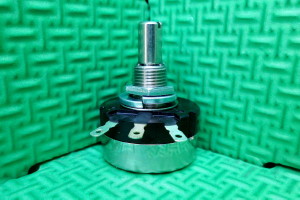

 NEW Potentiometer 500ohm for Daiwa, Kenpro, Yaesu etc rotator's & full circle controllers. These new POT's have end stops in them, so when installing them make sure you align them properly $40.00
 2  Amphenol LTW

 Conn5pP



 NEW:- 5 pin Plug (F/M) IP67, 20 amp rated. "D" series $36.ea
 2  Amphenol LTW

 Conn5pCS

 NEW:- 5 pin Chassis Socket (Male) IP67, 20 amp rated. "D" series $26.ea
 1  Amphenol LTW



 Conn7pP

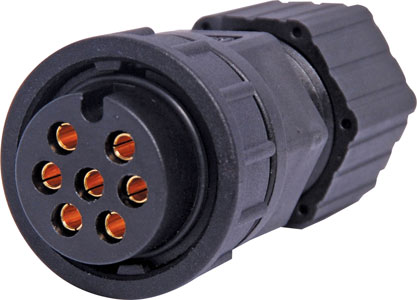

 NEW:- 7 pin Plug (F/M) IP67, 20 amp rated. "D" series $42.ea
 1  Amphenol LTW

 Conn7pCS

 NEW:- 7 pin Chassis Socket (Male) IP67, 20 amp rated. "D" series $29.ea
 10

 CINCH

Also BEAU

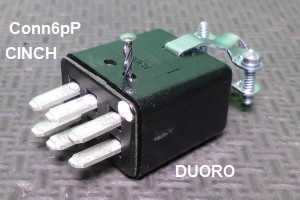

 Conn6pP

NEW:- 6 pin Plug (Male) CINCH P-306-CCT

 Also known as BEAU P-3306-CCT

$19.ea
 10

 CINCH

Also BEAU

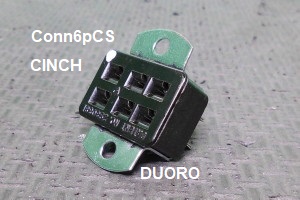

 Conn6pCS



NEW:- 6 pin Chassis Socket (F/M) CINCH S-306AB

Also BEAU S-3306AB

$15.ea
30

CINCH

Also Beau



 Conn8pP

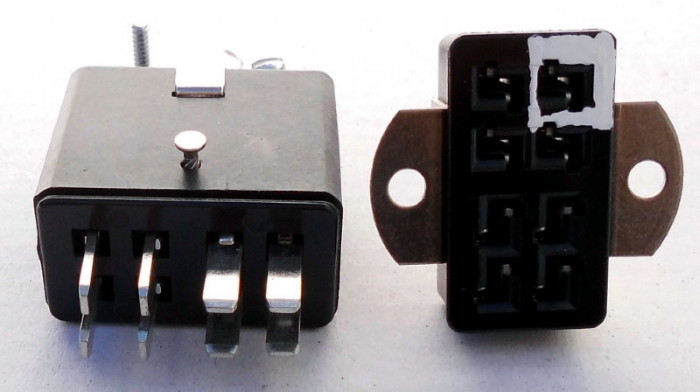

 NEW:- 8 pin Plug (Male) CINCH P-308-CCT

 Also known as BEAU P-3308-CCT

$25.ea
10

CINCH

Also Beau

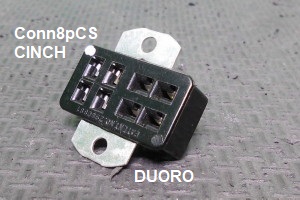

 Conn8pCS

NEW:- 8 pin Chassis Socket (F/M) CINCH S-308AB

Also BEAU S-3308AB

$25.ea

Sale

Qty

  Manufacture  Image & Part Number  Description   $ ea.  TOTAL
100

Sourced

locally



 RB9.5

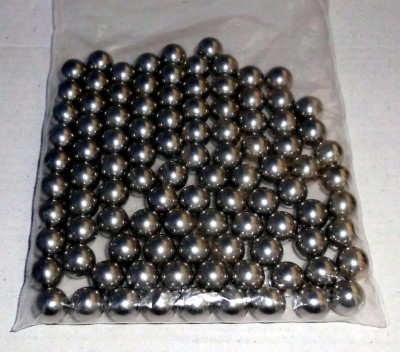

 Rotator Bearings 9.52mm (3/8') steel ball bearings x 100 (come in 2 x packets of 50), for Daiwa, Kenpro, Emotator & Yaesu etc rotators $ 0.30 $  30.00
100

Sourced

locally



 RB11.0

 Rotator Bearings 11.0mm steel ball bearings x 100 (Comes in 2 x packets of 50) $ 0.35 $  35.00
