KENPRO

ROTATOR PARTS etc.

....

  SCROLL DOWN FOR PARTS LISTED.

Kur02 page updated 08/02/2024



CLICK below buttons for selected manufactures parts.

ALINCO etc  CDE   COMMON   CREATE   DAIWA  EMOTATOR   HYGAIN  YAESU



PayPal LogoPayPal Logo



 Click For PURCHASING Details

PayPal LogoPayPal Logo



Buy now with PayPal



All prices are in Australian Dollars (AUD) & includes GST.



  Click For SALES & To CONTACT Duoro Services



I ALSO SERVICE, REPAIR, REFURBISH & UPGRADE YOUR ROTATORS.



 Click For Rotator Manuals      Click For Rotator Comparison Tables



I Have Lots Of Spare Parts Available Not All Are Listed Below, Please Contact Me, I May Have What You Need In Stock Or Within A Rotator Or Controller For Spare Parts. KR-2000 rotator for parts now available





STOCK AVAILABLE NEW, NOS, 2ND HAND & REFURBISHED SPARE PARTS, ACCESSORIES & HARDWARE

.Qty..

.New

.Qty..

USED

..Qty

Refurb

kenprob.jpg - 5.12 Kb

kenprob.jpg - 5.12 Kb

$..AUD...
Part No & Image.......... ...Description. ...each
 8       yLED-ac



 NEW - yLED-ac. Replacement display illumination LED PCB for KENPRO KR-800s, KR-1000s & HR-1300 controllers, Also YAESU G-800s, G-1000s & G-1300 controllers.
Comes standard with 3 x square white LED's, Brightness adjustment via trim POT, Current limiting protection resistor, Bridge rectifier & 470uF 16v CAP (for minimal AC pulsing operation), Terminal block for non soldering installation + full install instructions with 10 colour pics.

Tools require for easy installation:- No. 2 philips screwdriver, Side cutters &/or wire strippers, Small philips screw driver, Trim POT adjuster flat screw driver & Watch the yLED-ac videos.

Australia wide postage ($11.00) (for up to 10 PCB's) is via prepaid small satchel, Packaging & handing included in the freight price, Preferred payment is via EFT/Bank transfer/Direct deposit etc, Please supply full name & delivery address so I will send you a complete invoice with my bank details.

youtube-logo-full_color100.jpg - 5.00 Kb

Watch the yLED-ac KR-800s install video on YouTube

Watch the yLED-ac G-1300 install video on YouTube

$  24.ea
 4       yLED-ac-AE



NEW - yLED-ac-AE. Replacement display illumination LED PCB for KENPRO KR-5400, KR-5500 & KR-5600 Dual axis controllers, Also YAESU G-5400, G-5500 & G-5600 dual axis controllers.
Comes standard with 2 remote 3 white LED self adhesive PCB , Brightness adjustment via trim POT, Current limiting protection resistor, Bridge rectifier & 470uF 16v CAP (for minimal AC pulsing operation), Input & output terminal block for non soldering installation + install instructions.

Tools require for easy installation:- No. 2 philips screwdriver, Side cutters &/or wire strippers, Small philips screw driver, Trim POT adjuster flat screw driver & Watch the yLED-ac-AE video.

Australia wide postage ($11.00) (for up to 10 PCB's) is via prepaid small satchel, Packaging & handing included in the freight price, Preferred payment is via EFT/Bank transfer/Direct deposit etc, Please supply full name & delivery address so I will send you a complete invoice with my bank details.

youtube-logo-full_color100.jpg - 5.00 Kb

Watch the yLED-ac-AE install video on YouTube

$  28.ea
 5      yLED-ac-RC



NEW - yLED-ac-RC. Replacement display illumination LED PCB for KENPRO KR-400RC & KR-600RC controllers. Also YAESU G-400RC & G-600RC controllers,
Comes full assembled & tested:- Comes standard with 3 x square white LED's, Brightness adjustment via trim POT, Current limiting protection resistor, Bridge rectifier & 470uF 16v CAP (for minimal AC pulsing operation), Terminal block for non soldering installation, Two self adhesive mounting feet (because the RC controllers do not have mounting posts) + Installation instructions & also watch the yLED-ac-RC installation video via the link below.

Tools require for easy installation:- No. 2 philips screwdriver, Side cutters &/or wire strippers, Small philips screw driver, Trim POT adjuster flat screw driver & Watch the yLED-ac-RC video via the link below.

Australia wide postage ($11.00) (for up to 10 PCB's) is via prepaid small satchel, Packaging & handing included in the freight price, Preferred payment is via EFT/Bank transfer/Direct deposit etc, Please supply full name & delivery address so I will send you a complete invoice with my bank details.

youtube-logo-full_color100.jpg - 5.00 Kb

Watch the yLED-ac-RC install video on my YouTube channel

 $  26.ea
 7

 yLED-dc-XL-A/C

NEW - yLED-dc-XL-A/C. Replacement display illumination LED PCB for Kenpro KR-450XL & KR-650XL rotator controllers.
Also available for Yaesu G-450XL, G-650XL, G-450A/C, G-650A/C & G-1000A/C rotator controllers.

Comes fully assembled & tested:- Comes standard with 3 x square white LED's, Brightness adjustment via trim POT, Current limiting protection resistor, Terminal block for non soldering installation & 2 x self adhesive feet + Installation instructions & also watch the yLED-dc-XL-A/C installation video on YouTube .

Tools require for easy installation:- No. 2 philips screwdriver, Side cutters &/or wire strippers, Small philips screw driver, Trim POT adjuster flat screw driver, Black marker & Watch the yLED-dc-XL-A/C YouTube video.

Australia wide postage ($11.00) (for up to 10 PCB's) is via prepaid small satchel, Packaging & handing included in the freight price, Preferred payment is via EFT/Bank transfer/Direct deposit etc, Please supply full name & delivery address so I will send you a complete invoice with my bank details.

youtube-logo-full_color100.jpg - 5.00 Kb

Watch the yLED-dc-XL-A/C install video on my YouTube channel

$  24.ea

sold

7501-075

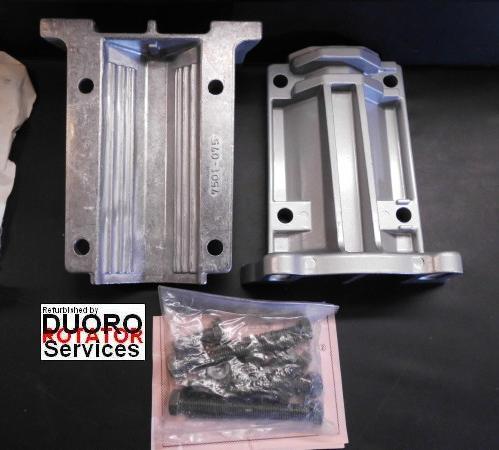

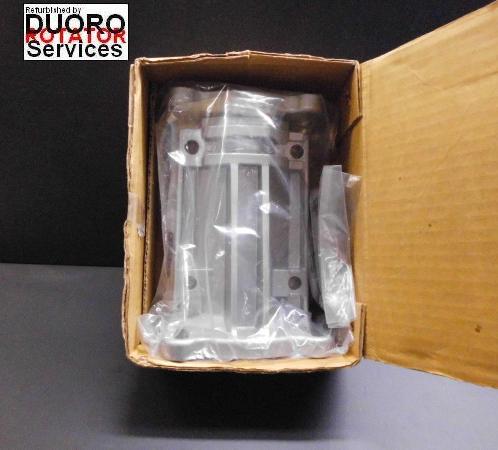

New Old Stock KR-400/600 Mast Clamp Set in original Japanese packaging $ SOLD

Sold



8601-040

GC-038

NEW KENPRO - YAESU Mast Clamp Set. Replacement mast clamps for KR-400, KR-600, KR-800 & KR-1000 & also current Yaesu rotators

 SOLD

OUT

1

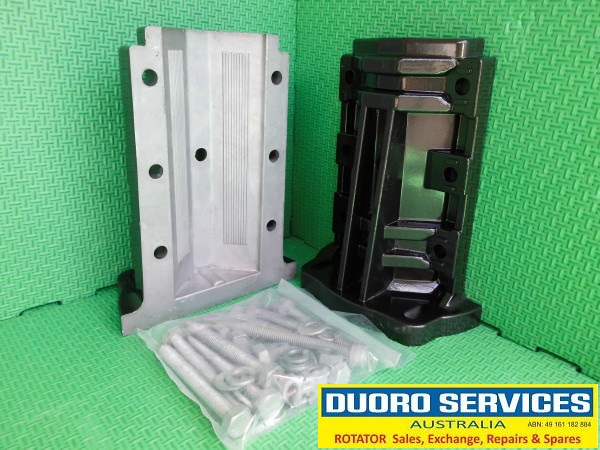

GC-048-6

NEW KENPRO - YAESU 6 bolt clamping mast clamp for large Kenpro rotators (KR-2000 & KR-2700, HR-2700 etc) & Yaesu rotators (G-2700, G-2800) will fit other models. $ 129.00




  $ 00
NEW USED Refurb Part No & Image Description $ AUD

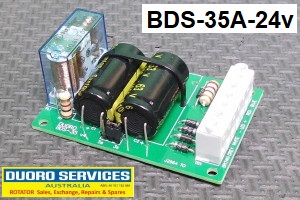

1

BDS-35A-24v

NEW & IMPROVED v4. Brake Delay PCB for KR-2000 rotators.

Includes selectable 3 or 5 second delay, 16 Amp DPDT relay, 7 way 16 Amp terminal block for all wiring termination including LED brake action output.

By re-wiring the brake switch it can be configured into being a manual override/full auto brake switch (no more forgetting to turn the brake back on). L 72mm x W 49mm x H 27mm. Mounts on top of the transformer. View the YouTube video of the KR-2000AB in action on the rotator sales page video section.

I can do this upgrade for you, please contact me for a price.

$  69.00

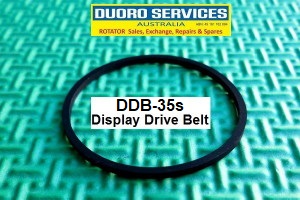

5

DDB-35s



NEW PRODUCT

NEW. Display Drive Belt

For KR-400RC + KR-600RC + KR-2000RC (Round Controllers)

Also Yaesu G-400RC + G-600RC + G-2000RC (Round Controllers).

Will also fit current version Yaesu controllers.

This belt is made by Daichi which I sourced locally.

It's a square section belt 35 dia. x 1.4mm sq.

It's a direct replacement for the original version.

$    4.ea

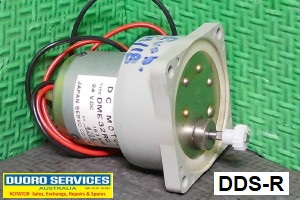

    1

DDS-R

Refurbished Display Drive Servo for early (direct drive not belt drive) KR-400RC, KR-600RC & KR-2000RC (Round controllers). Completely stripped down, cleaned & re-assembled with new grease. Includes new DDG-14RC.

$  40 ea

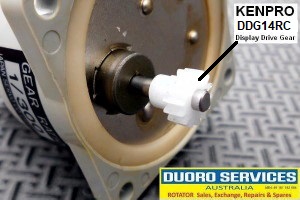

12

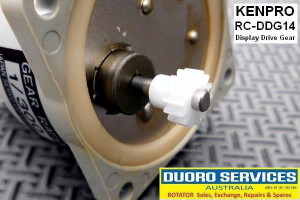

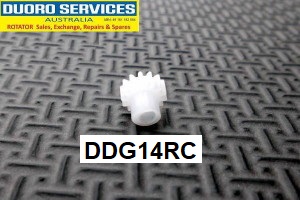

DDG14RC

NEW PRODUCT

NEW DDG14RC Display Drive Gear 14 tooth:-

For KR-400RC + KR-600RC + KR-2000RC (Round Controllers)

Also Yaesu G-400RC + G-600RC + G-2000RC (Round Controllers).

Do you have a Kenpro (or Yaesu) (Servo direct drive not belt drive) Round Controller (RC) with a cracked & slipping Display Drive Gear. I have found a supplier which has a replacement. This NEW gear is 7mm long including the gear edge of 3mm & is the same pitch as the original. DDG14RC replacement gear is made from Acetal, a much better plastic than the original. The hole size is a better fit than the original, which had a hole size of about 2.7mm & was forced onto the 3mm drive shaft, hence why they crack.

$    3.ea

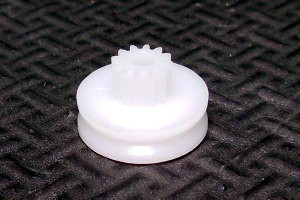

64

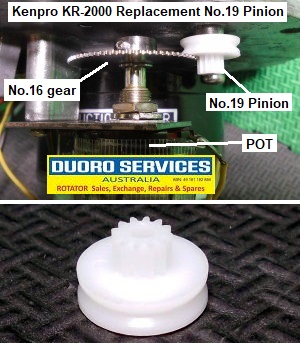

KR2000-19

KR-2000 item 19

NEW. Replacement upgraded POT Pinion for KR-2000 rotators. This is a new gear, (as the previous gear I was selling is no longer available).

This gear is a pulley/pinion style, that I found & I purchased the last of the supplies stock.

The pulley part is only used to lesson the chance of cracking.

This pinion gear is also a lot cheaper than the last version I was selling.

$   4.ea

10

10

?







KD-38T-7

KD-38T-8

KD-38Ts

item 18

NEW & IMPROVED PRODUCT.

FOR Kenpro KR-400/600 & Daiwa DR-7500/7600 rotators.

KD-38T replacement single piece final drive gear (Item 18).

youtube-logo-full_color100.jpg - 5.00 Kb

View the KD-38T video on my YouTube channel

Specs.:- Now 9mm thick steel with a 20mm dia. x 0.8mm recess for the gear directly above it, 38 teeth x 1.25Module, Two versions available (KD-38T-7) 7mm standard shaft hole size & (KD-38t-8) with a 8mm shaft hole sizes, about 113 grams in weight, a new 5.9mm spacer is available.

Replacement/upgraded 8mm dia shafts & gear sets available on request.

KD-38T replaces the 3 or 4 stack of gears, which move , separate, track groves in rare ring gear & no 19 gear etc plus has less contact area onto the ring gear.

KD-38T is made in Australia for me by SWB Plus Engineering.

KD-38T gear will not track groves in ring gear & has more surface contact area with the ring gear. Which means less damage / breakages to the (rare) ring gear.

KD-38T is a direct replacement for the final drive gear in Kenpro KR-600 & Daiwa DR-7600 + late model KR-400's with 4 stack gears.

KD-38Ts will be supplied with a new (Item 15) 5.9mm spacer for early version Kenpro KR-400 & all Daiwa DR-7500. Because KD-38T is thicker than the original three stack gear the original spacer has to be replaced. The replacement spacer sets the spacing of the gear to the same as KR-600's & DR-7600's.

NOTE :- Most Kenpro KR-600 & Daiwa DR-7600 rotators rebuilt by me will have the KD-38T installed into them.

$  75.ea
NEW USED Refurb Part No & Image Description $ AUD
  6

18-3

2nd hand in good condition. Final drive gear  (18) 3 stack for KR-400 & Daiwa DR-7500. Sold as a set of three (3). $  30.00


1 set



18-4

2nd hand in good condition. Final drive gear (18) 4 stack & bush for KR-600 & Daiwa DR-7600. Sold as a set of 4 inc bush. $  60.00

2



POT-500N

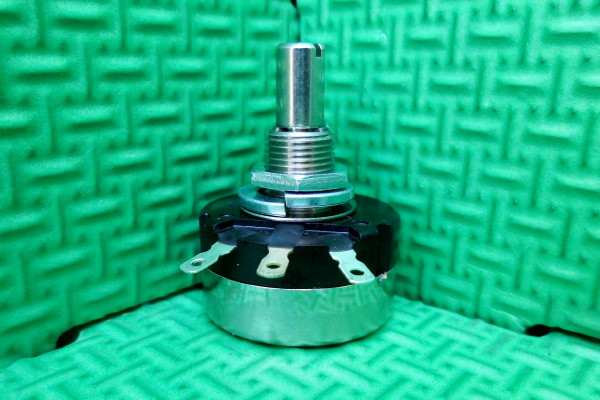

NEW. 500 Ohm Potentiometer for Kenpro Daiwa & Yaesu rotators & full circle controllers. These new POT's have limit end stops in them, so make sure you align them properly. New Lower Price.

$  40.ea

    8 POT-500-R

Refurbished 500 Ohm Potentiometer for Kenpro, Daiwa & Yeasu rotators & full circle controllers

$  29.00
20

PDG-13pa

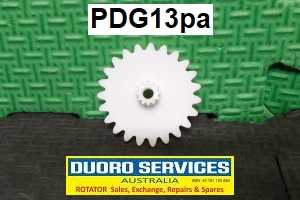

NEW. POT Drive Gear (No.13) for Kenpro KR-400, KR-500, KR-600 & also Daiwa DR-7500, DR-7600 & Yaesu G-400, G-500, G-600 ROTATORS.

This is my NEW replacement POT drive gear that was manufactured for me by AMS.

The gear is Laser Sintered 3D printed from PA2200 Polyamide 12, a whitish fine powder. The powder is laid down in a fine coat & is then Sintered by a Laser, the process is repeated building up to a finished product.

The finished product has:- High strength & stiffness, Good chemical resistance, good thermal properties.

youtube-logo-full_color100.jpg - 5.00 Kb

View the PDG-13pa video on my YouTube channel.



$  19.ea
40

RB8.0

KR-500

item 33 & 34

NEW 8.0mm Steel Ball Bearing x 40, enough to rebuild or refurbish your KR-500 Elevation Rotator $    8.00
100

RB9.5

KR-400 & KR-600

item 44

NEW. 9.52mm (3/8") Steel Ball bearings x 100 (comes in 2 packets of 50), enough to rebuild or refurbish your KR-400 or KR-600 Rotator $  30.00
100

RB11.0

KR2000 item 35

NEW  11.0mm Steel Ball bearings x 100, enough to rebuild & refurbish your KR-2000 Rotator $  35.00
NEW USED Refurb Part No & Image Description $   AUD
    sold

7501-001

Item No 41

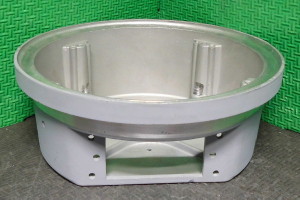

REFURBISHED Lower Housing. For KR-400, KR-600 & DAIWA DR-7500 & DR-7600 Rotators.

Has been cleaned up, Glass Bead Blasted & Etched Primed (ready for painting). The bearing tracks are in good condition, as with the rest of the housing.

$  80.00
  2

40 & 50

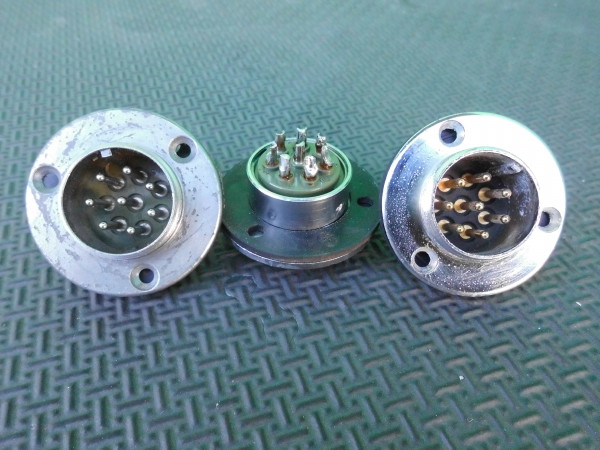

Original 8 pin chassis socket & rubber washer.

For KR-2000 ROTATOR, some in very good condition, some have paint etc on them & some the chrome has flaked off , some have chrome plated pins & some have gold plated pins.

$  19.00
  1

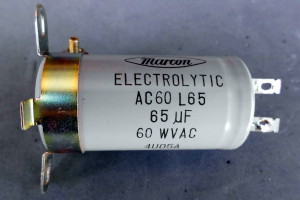

Cap65u60v

AC60L65

USED:-

Motor Start Capacitor 65uF 60volt

(25 x 51mm), TESTED OK, (KR/G-250 ROTATORS etc)

$  10. ea

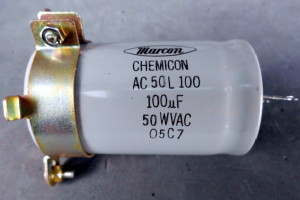

  3

Cap100u50v

AC50L100

USED:-

Motor start capacitor 100uF  50volts

(35 x 60mm), TESTED OK, includes mounting clamp. For KR400/500/600 ROTATORS.

$  15.ea
  2

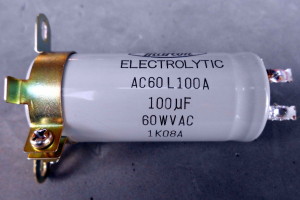

Cap100u60v

AC60L100

USED:-

Motor start capacitor 100uF 60volt

(26 x 62mm ), TESTED OK, inc. mounting clamp. For KR400/500/600 ROTATORS.

$   20.ea




NEW USED Refurb Part No & Image Description $ AUD
10

CAP100u110vN

Yaesu S8100641

NEW:-

Motor Start Capacitor 100uF 110volts

(30 x  50mm).

Replacement for Kenpro KR400, KR450, KR600, KR650, KR500 etc

For Yaesu G450, G650, G550 etc

$  50.ea


Out

Of Stock





Cap100u110v

MS100L110

USED:-

Motor Start Capacitor 100uF 110volts

(28 x 61mm), TESTED OK, inc mounting clamp, For KR400/500/600 ROTATORS

$   20.ea
  1

Cap130u110v

MS130L110



USED:-

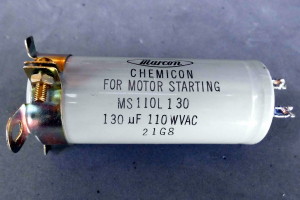

Motor Start Capacitor 130uF 110volts

(29 x 71mm) (KR-2000 ROTATOR)  tested, inc. mounting clamp used, TESTED OK.

$   20.ea
  10

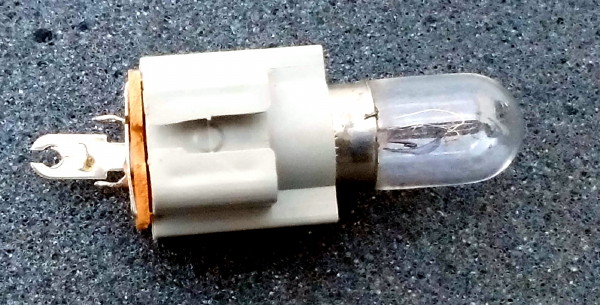

Lamp-H

Original meter illumination 28v lamp & holder for standard panel metered controllers. $    2. ea
  2

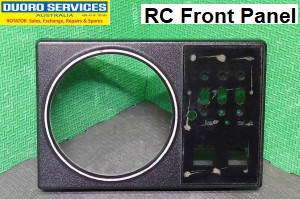

F.Panel-RC

Original, Front Panel for RC controllers (KR-400RC, KR-600RC & KR-2000RC). In good condition $  19 ea


1



FP-400RC

Original, Face Plate (aluminium) for KR-400RC. $    5. ea
  1

FP-600RC

Original, Face Plate (aluminium) for KR-600RC. $    5. ea
  Sold

FP-2000RC

Original, Face Plate (aluminium) for KR-2000RC. sold out
  2

Needle-RC

Original, Direction Needle for KR-400RC, KR-600RC & KR-2000RC controllers $   4. ea
  0

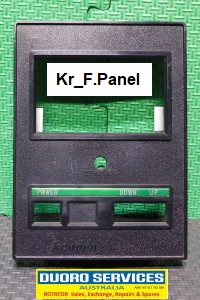

F.Panel

Original, Front Panel for KR-500 or KR-400, KR-600, can even be adapted for KR-2000. $  19.ea
  0

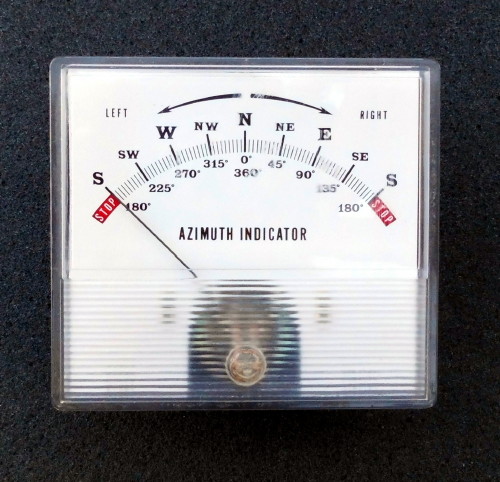

DDP-Meter

Original, Direction Display Panel Meter for standard controller. KR-400, KR-500, KR-600, KR-2000 etc $  19.00
  4 sets

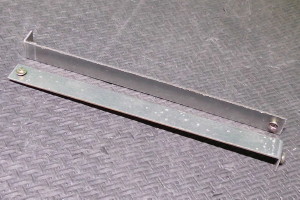

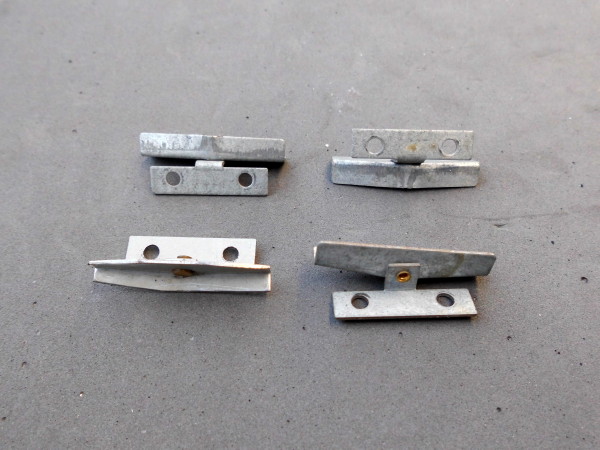

L.BKT-SC

Original top "L" BRACKETS for Standard Controller with panel meter KR400, 500, 600 & 2000. These brackets go between front & back panel at the top includes screws. Sold as a set of 2 $   2 set
  5 sets

L.BKT-RC

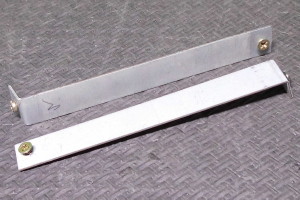

Original top "L" BRACKETS for RC (Round Controllers) KR-400RC, KR-600RC & KR-2000RC also G-400RC, G-600RC & G-2000RC. These bracket go between the front & back panels, includes screws. Sold as a set of 2. $   2 set
NEW USED Refurb Part No & Image Description $   AUD
    1

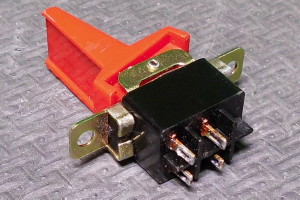

SW-PWR-R

Refurbished. Original Red power switch (DPST) for the standard controller  $  20 ea
    3

SW-PWR-B

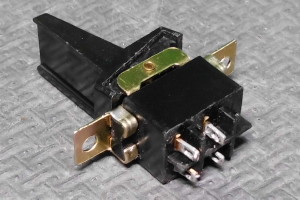

Refurbished. Original black power switch (DPST) for standard controllers  $  20 ea

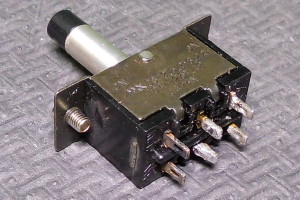

  6

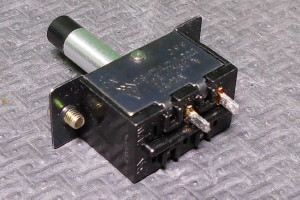

SW-PWR-RC

Original Power switch (SPST) for early series KR-400RC, KR-600RC & KR-2000RC  (round controllers)  $  10 ea


sold

out



SW-PWR-RC2

Original power switch (DPST) for late series KR-400RC, KR-600RC & KR-2000RC Also Yaesu G-400RC, G-600RC & G-2000RC (round controllers)   $   10 ea
  1

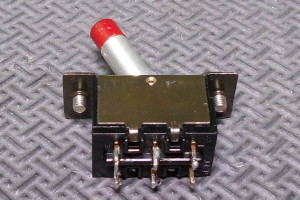

SW-Brake2000RC

Original Brake switch (DPDT) for KR-2000RC & Yaesu G-2000RC controllers $   10.00
    sold out

SW-DPDT

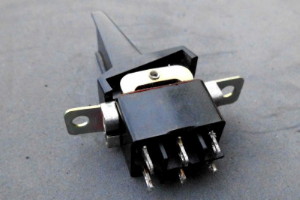

Refurbished. Original Right (CW) rotation switch (DPDT) late series KR-600 & KR-600RC + KR-2000RC controllers also Yaesu G-600 + G-2000 etc  $  20 ea
    sold out

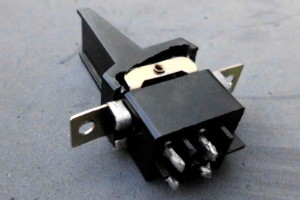

SW-DPST

Refurbished. Original left (CCW) rotation switch (DPST) late series KR-600 & KR-600RC + KR-2000RC controllers also Yaesu G-600 + G-2000 etc $  20 ea
NEW USED Refurb Part No & Image Description $ AUD
    sold out

SW-R

Refurbished. Original right (CW) rotation switch, (SPDT) late series KR-400 & KR-400RC controllers $  18 ea
    sold out

SW-L

Refurbished. Original Left (CCW) rotation switch (SPST) late series KR-400 & KR-400RC controllers. $  18 ea


Sold

Out

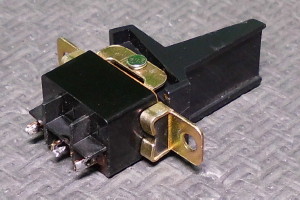

SW-SPDT

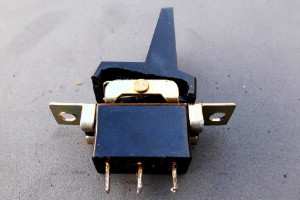

Refurbished. Original Right (CW) rotation switch (SPDT) early series KR-400RC controllers $  18 ea

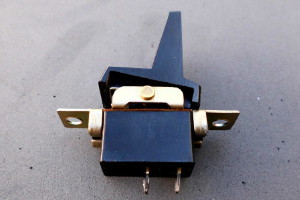

    sold out

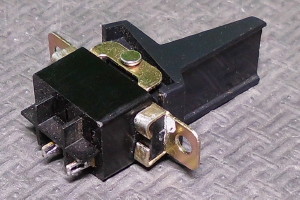

SW-SPST

Refurbished Original Right or Left (CW/CCW) rotation switch (SPST) from early series KR-400 controllers. Uses lock gizmo below, to only let one switch to be used at a time $  18 ea
  9

SW-Lock

Right or Left only Gizmo Only lets one direction switch to be push early series $    1. ea
  assort

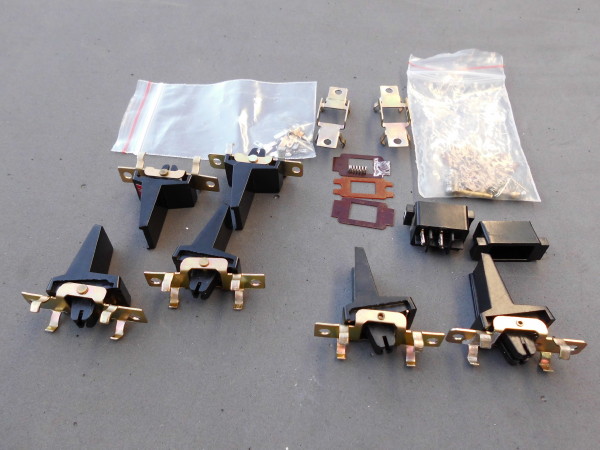

SW-Parts

Spare parts for switches (power & direction) levers, bodies & contacts etc (early & late series) $  POA
NEW USED Refurb Part No & Image Description $ AUD
  Sold out

7501-040

Item 54

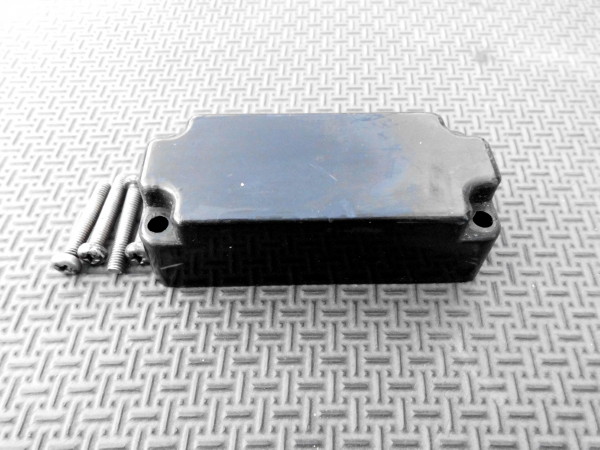

Original terminal cover for KENPRO KR400, KR500, KR600, KR600X, KR5400A, KR5600A & YAESU G400, G500, G600, G5400B, G5600B ROTATORS.

Some with screws &/or gasket in good condition, some may have repaired small cracks, some are painted. Sold as is.

$    10 ea
  1

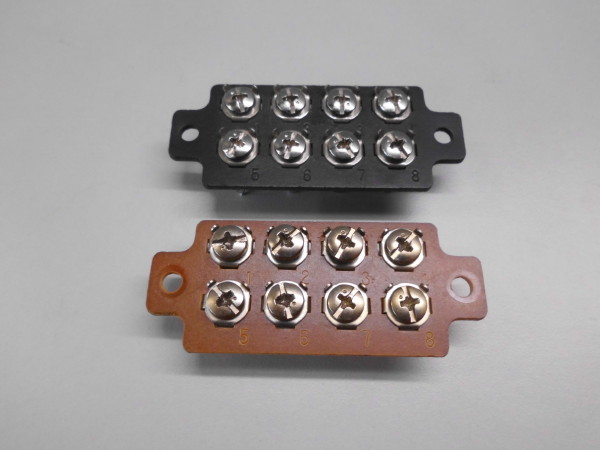

47 Black

Original 8 screw terminal plate for rotator black in colour with 8 flat/philips screws or plain flat screw heads. $    5. ea
  4

47 Orange

Original 8 screw terminal plate for controller orange in colour with 8 flat/philips or plain flat headed screws & some have mounting screws. $    3. ea
  6

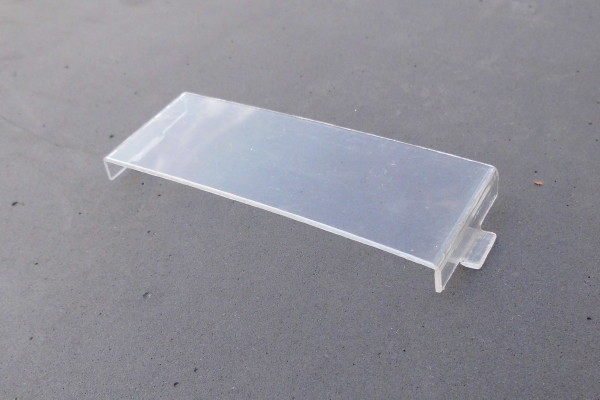

C-Cover

Original CLEAR Terminal cover for controller $    2. ea
  1

6p Term C

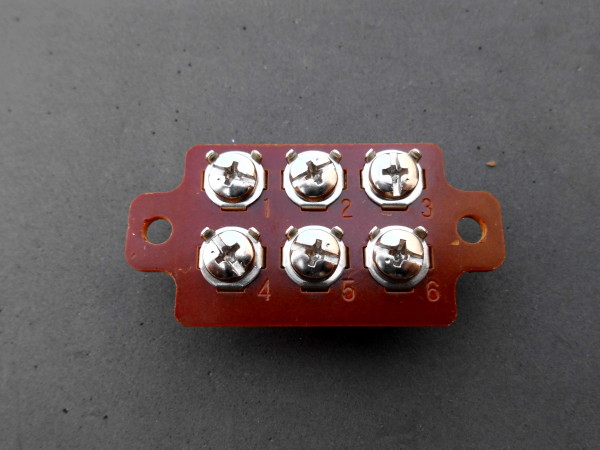

6 screw terminal plate controller (orange) $    1. ea
  1

6p Term R

6 screw terminal plate rotator (black) $    1. ea
NEW USED Refurb Part No & Image Description $ AUD
  1

KR_PCB

7502-013 or 7701-018

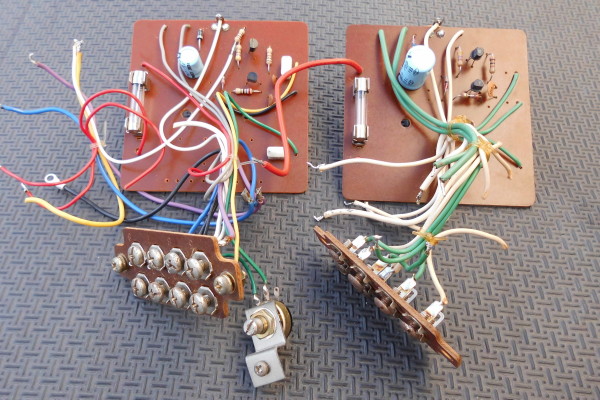

Original KR400-600-2000 PCB's for panel meter standard controllers. Some with full wiring + POT & terminal strip, some with out . Early & late series. Please ask for what I have in stock. $  49 ea
  4

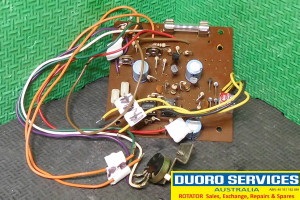

KR_PCB-RC

Original PCB for KR-400RC, KR-600RC & KR-2000RC full circle controllers. Most have all wiring & some have 8way terminal board, also some have had a 2way screw terminal add for the servo motor. Please ask for what I have in stock.   $  49 ea
