YAESU

Rotator Parts etc



Kur02 page updated 23/02/2024



NOTE 1:- IF THE PARTS YOU WANT ARE NOT LISTED BELOW. Please Check The KENPRO Parts Page.

NOTE 2 :- Yaesu purchased Kenpro's (KR etc) rotator product line in the early 1990's & replaced the "KR" prefix with "G".



ALINCO etc   CDE    COMMON   CREATE   EMOTATOR   HYGAIN   KENPRO



  Click For SALES & To CONTACT Duoro Services



PayPal LogoPayPal Logo



 Click For PURCHASING Details

PayPal LogoPayPal Logo



All prices are in Australian Dollars (AUD) & include GST



STOCK AVAILABLE NEW, SECOND HAND & REFURBISHED SPARE PARTS ETC
QTY QTY QTY YAESU YAESU $..AUD...
NEW USED Refurb Part No. & Image Description ...Each
5

 yLED-dc

NEW - yLED-dc. Replacement display illumination LED PCB for Yaesu DXA, DXC & SA controller for G-800, G-1000 & G-2800 rotators.
Comes standard with 3 x square white LED's, Brightness adjustment via trim POT, Current limiting protection resistor, Terminal block for non soldering installation + full install instructions with 10 colour pics.

Tools require for easy installation:- No. 2 philips screwdriver, Side cutters &/or wire strippers, Small philips screw driver, Trim POT adjuster flat screw driver, Black marker & Watch the yLED-dc video.

Australia wide postage ($11.00) (for up to 10 PCB's) is via prepaid small satchel, Packaging & handing included in the freight price, Preferred payment is via EFT/Bank transfer/Direct deposit etc, Please supply full name & delivery address so I will send you a complete invoice with my bank details.

 Watch the video on YouTube

$  22.ea
5

 yLED-dc-XL-A/C



NEW - yLED-dc-XL-A/C. Replacement display illumination LED PCB for Yaesu G-450XL, G-650XL, G-450A/C, G-650A/C & G-1000A/C rotator controllers.
Also available for Kenpro KR-450XL & KR-650XL rotator controllers.

Comes fully assembled & tested:- Comes standard with 3 x square white LED's, Brightness adjustment via trim POT, Current limiting protection resistor, Terminal block for non soldering installation & 2 x self adhesive feet + Installation instructions & also watch the yLED-dc-XL-A/C YouTube installation video .

Tools require for easy installation:- No. 2 philips screwdriver, Side cutters &/or wire strippers, Small philips screw driver, Trim POT adjuster flat screw driver, Black marker & Watch the yLED-dc-XL-A/C YouTube video.

Australia wide postage ($11.00) (for up to 10 PCB's) is via prepaid small satchel, Packaging & handing included in the freight price, Preferred payment is via EFT/Bank transfer/Direct deposit etc, Please supply full name & delivery address so I will send you a complete invoice with my bank details.

Watch the yLED-dc-XL-A/C video on YouTube



 $  24.ea
3

 yLED-ac

 NEW - yLED-ac. Replacement display illumination LED PCB for YAESU G-800s, G-1000s & G-1300 rotator controllers, Also KENPRO KR-800s, KR-1000s & HR-1300 rotator controllers.
Comes standard with 3 x square white LED's, Brightness adjustment via trim POT, Current limiting protection resistor, Bridge rectifier & 470uF 16v CAP (for minimal AC pulsing operation), Terminal block for non soldering installation + full install instructions with 10 colour pics.

Tools require for easy installation:- No. 2 philips screwdriver, Side cutters &/or wire strippers, Small philips screw driver, Trim POT adjuster flat screw driver & Watch the yLED-ac videos on YouTube.

Australia wide postage ($11.00) (for up to 10 PCB's) is via prepaid small satchel, Packaging & handing included in the freight price, Preferred payment is via EFT/Bank transfer/Direct deposit etc, Please supply full name & delivery address so I will send you a complete invoice with my bank details.

Watch the yLED-ac KR-800 video on YouTube

Watch the yLED-ac G-1300 video on YouTube

$  24.ea
1

yLED-ac-AE





NEW - yLED-ac-AE. Replacement display illumination LED PCB for YAESU G-5400, G-5500 & G-5600 Dual axis controllers, Also  KENPRO KR-5400, KR-5500 & KR-5600 dual axis controllers.
Comes standard with 2 remote 3 white LED self adhesive PCB , Brightness adjustment via trim POT, Current limiting protection resistor, Bridge rectifier & 470uF 16v CAP (for minimal AC pulsing operation), Input & output terminal block for non soldering installation + install instructions.

Tools require for easy installation:- No. 2 philips screwdriver, Side cutters &/or wire strippers, Small philips screw driver, Trim POT adjuster flat screw driver & Watch the yLED-ac-AE video.

Australia wide postage ($11.00) (for up to 10 PCB's) is via prepaid small satchel, Packaging & handing included in the freight price, Preferred payment is via EFT/Bank transfer/Direct deposit etc, Please supply full name & delivery address so I will send you a complete invoice with my bank details.

youtube-logo-full_color100.jpg - 5.00 Kb

Watch the yLED-ac-AE install video on YouTube

$  28.ea
2



 yLED-ac-RC



NEW - yLED-ac-RC. Replacement display illumination LED PCB for YAESU G-400RC & G-600RC rotator controllers, Also KENPRO KR-400RC & KR-600RC rotator controllers.

Comes full assembled & tested:- Comes standard with 3 x square white LED's, Brightness adjustment via trim POT, Current limiting protection resistor, Bridge rectifier & 470uF 16v CAP (for minimal AC pulsing operation), Terminal block for non soldering installation, Two self adhesive mounting feet (because the RC controllers do not have mounting posts) + Installation instructions & also watch the  yLED-ac-RC installation video on YouTube.

Tools require for easy installation:- No. 2 philips screwdriver, Side cutters &/or wire strippers, Small philips screw driver, Trim POT adjuster flat screw driver & Watch the yLED-ac-RC video on YouTube.

Australia wide postage ($11.00) (for up to 10 PCB's) is via prepaid small satchel, Packaging & handing included in the freight price, Preferred payment is via EFT/Bank transfer/Direct deposit etc, Please supply full name & delivery address so I will send you a complete invoice with my bank details.

Watch the yLED-ac-RC video on YouTube

$  26.ea


Yaesu G-800 & G-1000 rotator (same as Kenpro KR-800 & KR-1000), parts list below.

NOTE:- The G-800 & G-1000 use all the same parts EXCEPT 3 gears in the drive train.

I do have other parts available, not all are listed, please contact to see if I have what you need.

NEW USED Refurb Part No. & Image Description & Yaesu's Actual Part number (   ) $  AUD
3

Yaesu S8000374

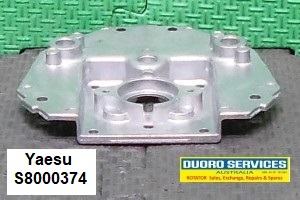

NEW:- Lower Gearbox chassis & motor mount. (S8000374)

For G-800 & 1000, Also Kenpro KR-800 & KR-1000.

$  55.ea
2

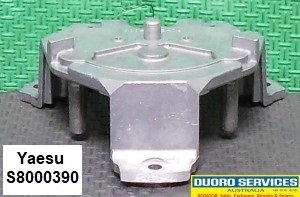

Yaesu S8000390

NEW:- Upper Gearbox Chassis. (S8000390)

For G-800 & G-1000, Also Kenpro KR-800 & KR-1000.

$ 88.ea

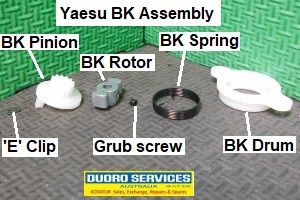

Yaesu BK Assembly



Brake assembly parts list information etc.

G-450/650 BK Assembly Pic.

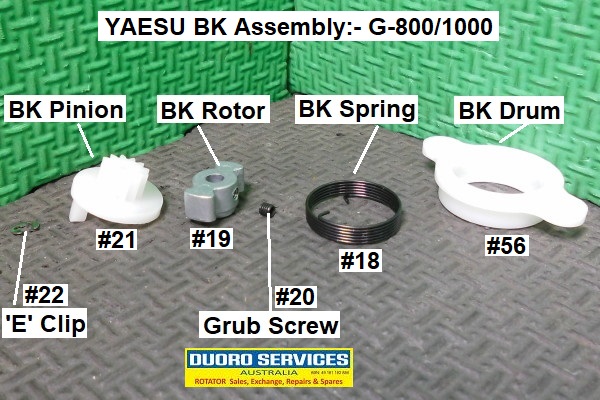

G-800/1000 BK Assembly Pic.

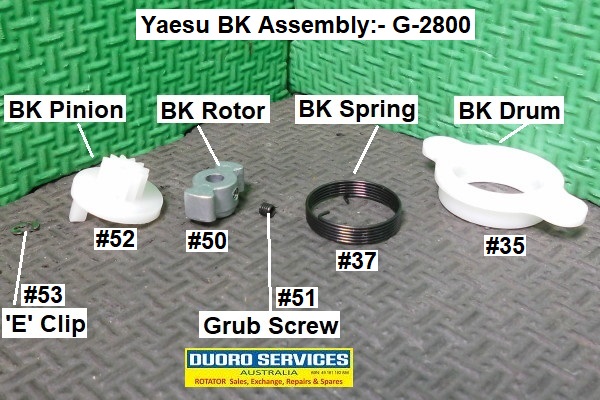

G-2800 BK Assembly Pic.

As seen in the above parts lists Yaesu uses different # Part location numbers for each model, even though most of Yaesu's actual part for each item is the same, I'm only use one of the # location numbers below to make it easier.

INFO

ONLY

2

Yaesu S8000376

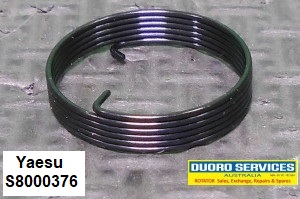

NEW:- BK Brake SPRING. (S8000376)

For G-600, G-800, G-1000, G-1300, G-2700 & G-2800 etc, Also for Kenpro KR-600, KR-800, KR-1000, HR-1300, KR-2700 etc

$  20.ea
5

Yaesu S80001257

NEW:- BK Brake SPRING. (S80001257)

(this spring has less winds than the above version)

For G-450, G-650, G-550, Also Kenpro KR-450, KR-650

$  15.ea
2

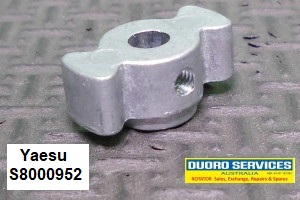

Yaesu S8000952

NEW:- BK Brake Butterfly. (S8000952).

For G-550, G-600, G-650, G-800, G-1000, G-1300, G-2700 & G-2800 etc, Also for Kenpro KR-600, KR-650, KR-800, KR-1000, HR-1300, KR-2700 etc
$  24.ea
6

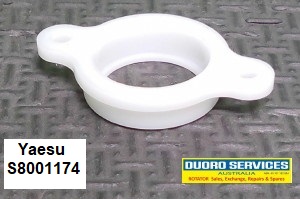

Yaesu S8001174



NEW:- BK Brake DRUM. (S8001174)

 For G-550, G-600, G-650, G-800, G-1000, G-1300, G-2700 & G-2800 etc, Also for Kenpro KR-600, KR-650, KR-800, KR-1000, HR-1300, KR-2700 etc

$    6.ea
8

Yaesu S8000947

NEW:- BK Motor PINION gear. (S8000947)

For G-550, G-600, G-650, G-800, G-1000, G-1300, G-2700 & G-2800 etc, Also for Kenpro KR-600, KR-650, KR-800, KR-1000, HR-1300, KR-2700 etc

$  20.ea
2

Yaesu S8000386

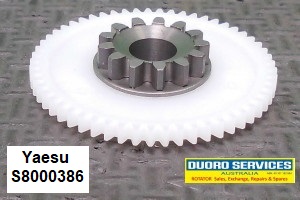

NEW:- 1st Drive Gear (Plastic & metal). (S8000386)

For G-450/650, G-800/1000, Also Kenpro KR-450/650, KR-800/1000 & KR-2700.

$  65.00
2

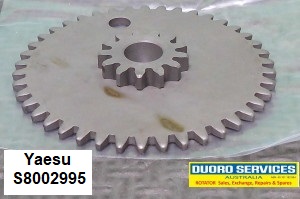

Yaesu S8002995

NEW:- Drive Gears No. 2 & 3. (S8002995)

For G-800 & G-1000, Also Kenpro KR-800 & KR-1000.

$  40.ea
2

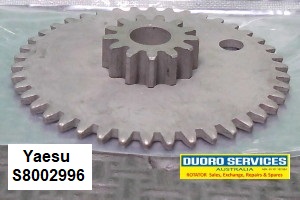

Yaesu S8002996

NEW:- Drive Gear No. 4. (S8002996)

 For G-800 & Kenpro KR-800.

$  44.ea
1

Yaesu S8002997

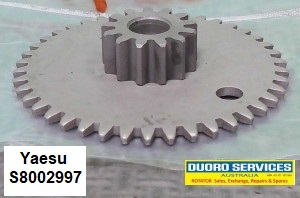

NEW:- Drive Gear No. 4. (S8002997)

For G-1000 & Kenpro KR-1000.

$  44.00
NEW USED Refurb Part No. & Image Description $  AUD
2

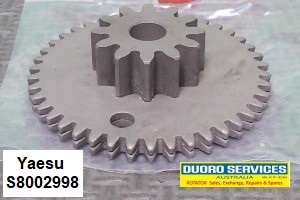

Yaesu S8002998

NEW:- Drive Gear No. 5. (S8002998)

For G-800 & Kenpro KR-800.

$  58.ea
1

Yaesu S8002999

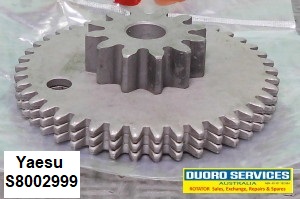

NEW:- Drive Gear No. 5. (S8002999)

For G-1000 & Kenpro KR-1000.

$  60.ea

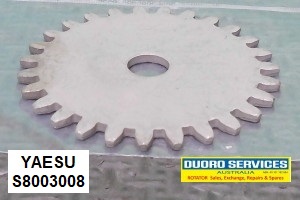

Yaesu S8003008



NEW:- Final Drive gears No. 6. (S8003008).

For G-800 (set of 4 needed) & for G-1000 (2 sets x 3 gears needed).



$  10. ea
8

Yaesu S8002718

NEW:- Push Nut Retainer (between 1st & 3rd gear + limit swing bar). (S8002718)

For G-800 & G-1000, Also Kenpro KR-800 & KR-1000.

$   4.ea
7

Yaesu S8000395

NEW:- POT Mount (plastic). (S8000395)

For G-800 & G-1000, Also Kenpro KR-800 & KR-1000.

$  19.ea
1

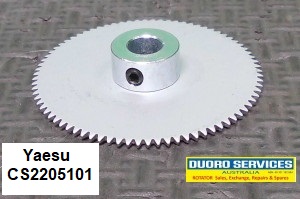

Yaesu CS2205101

NEW:- POT Gear (metal) includes M3 grub screw. (CS2205101)

For G-800 & G-1000, Also Kenpro KR-800 & KR-1000.

$  24.ea
8

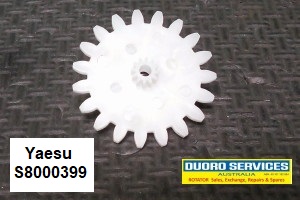

Yaesu S8000399

NEW:- POT Drive Gear (plastic). (S8000399)

For G-800 & G-1000, Also Kenpro KR-800 & KR-1000.

$  10.ea
  1

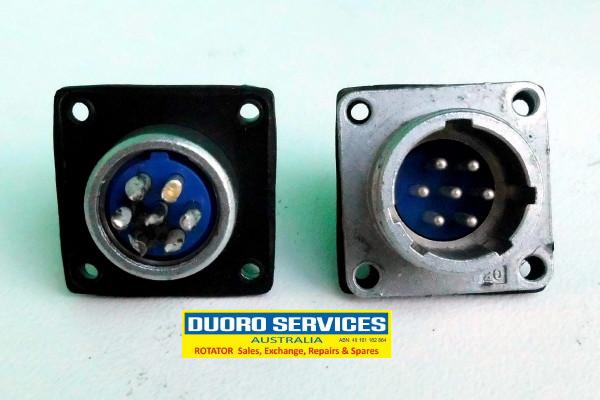

G-CS7p

7 Pin chassis socket for rotator inc. rubber washer. $  5.ea
2

40M-WP

NEW:- Plug set for current Rotators & Controllers, including weather boot for rotator $ 55.ea

NEW USED Refurb Part No. & Image Description $  AUD

9

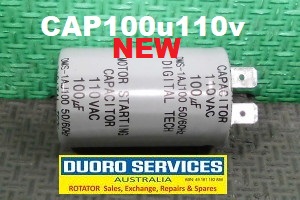

CAP100u110vN

Yaesu S8100641



NEW:- Motor Start Capacitor 100uF 110volts (30 x  50mm).

For Yaesu G450, G650, G550 etc

Also replacement for Kenpro KR400, KR450, KR600, KR650, KR500 etc



$  50.ea

8



POT-500N

RA25Y20s

NEW Potentiometer 500ohm (by COSMOS) for Daiwa, Kenpro, Yaesu etc rotator's & full circle controllers. These new POT's have end stops in them, so when installing them make sure you align them properly. New Lower Price. $  40.ea

2

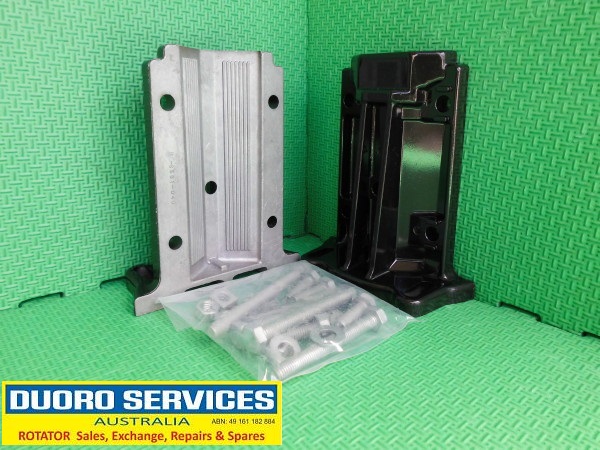

GC-038

NEW mast clamps for Yaesu & Kenpro Rotators $  89.ea
1

GC-048-6

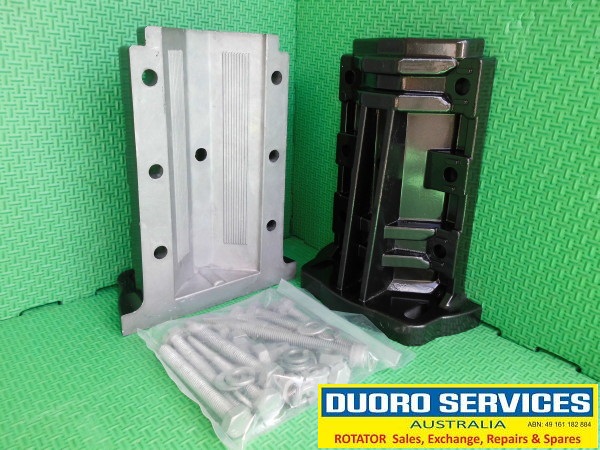

NEW Mast Clamp (6 bolt clamping not 4) for Yaesu G-2700, G-2800 & Kenpro KR-2000 & KR-2700 & HR-2700 etc rotators. Can also be used as a lower mast clamp most Kenpro & Yaseu rotators.  $  129.ea
