ROTATOR MOUNTING BRACKETS

SMB65ss Series

SIDE MOUNT BRACKETS.

NEW. Made from 3mm Stainless Steel.

"For Antenna System With A Maximum Total Wind Area Of 1.0m Square".

Minimum of two brackets needed 1 x SMB65ssB & 1 x SMB65ssR, sold individually.

IF NONE IN STOCK, THEY ARE MADE TO ORDER.

PAID IN ADVANCE, 2~3 WEEK LEAD-TIME.

View the video on YouTube

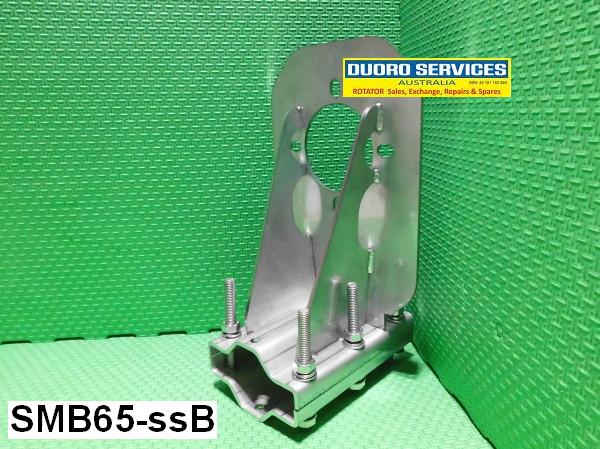

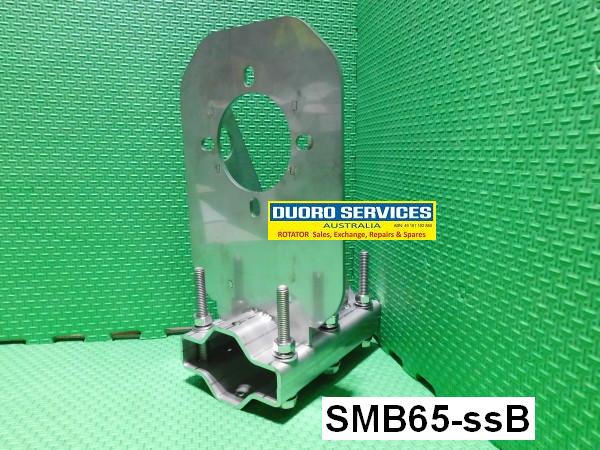

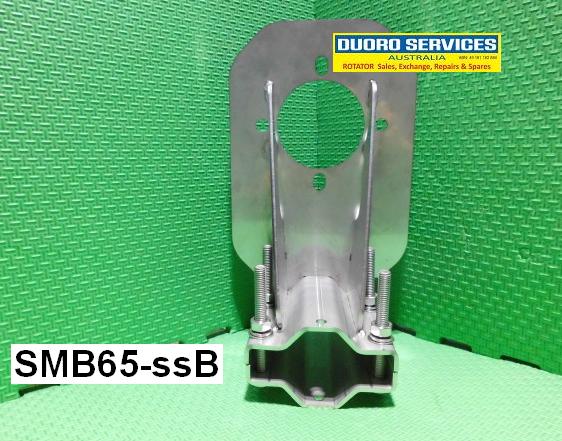

 SMB65ssB.

(Qty 1) IN STOCK.          (Each Bracket Is)  $275.00 AUD.

MAST BEARING NOT INCLUDED.

The pics below are of the actual item for sale.

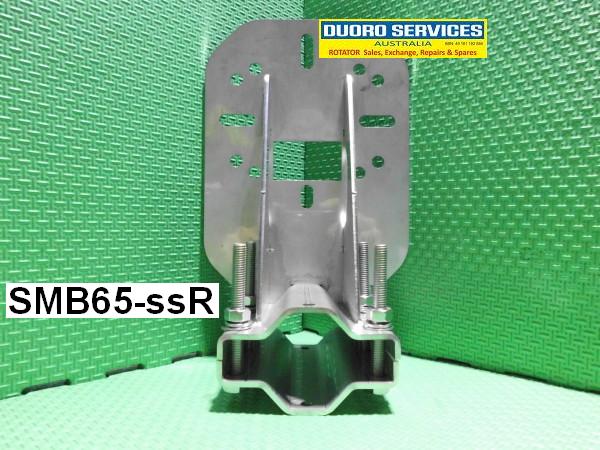

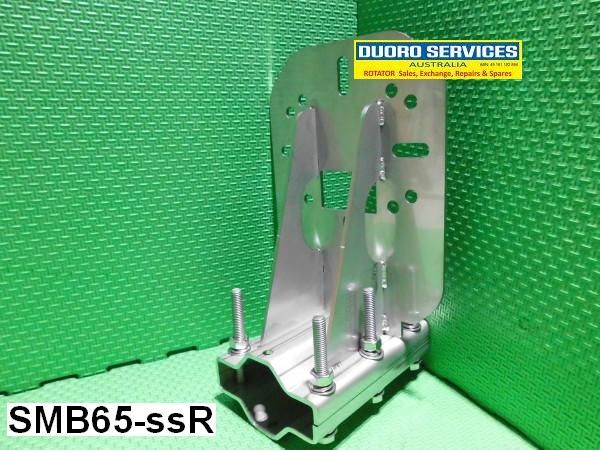

 SMB65ssR.

(Qty 1) IN STOCK.          (Each Bracket Is)  $275.00 AUD.

The pics below are of the actual item for sale.

 SMB65ss Series SIDE MOUNT BRACKET RODUCT INFO:-

 SMB65ssR is for the  rotator & SMB65ssB is for mast thrust bearing.

"For Antenna System With A Maximum Total Wind Area Of 1.0m Square".

Support mast, clamping sizes:-

50 to 68mm diameter round tube, RECOMMENEND 60~68mm dia.

65 to 68 mm SQUARE tube, (Using optional longer bolts).

NEW:- OPTIONAL Locator Plate & Backing Clamp for LIGHT DUTY SETUP using 50 x 50mm Square or 50 x 75mm Rectangle SUPPORT MAST, POA.

Can also be attached to a flat surface 100mm plus width, (using screws or bolts).

Each bracket is made from 3mm Stainless Steel, Laser cut, computer folded & welded by MICRO Manufacturing in Australia.

Supplied with backing plate & 6 x 65mm M8 S/S hex set screws, nuts & washers.

Has provision for four (4) support mast locking screws or bolts

A minimum of two brackets (1x SMB65ssB & 1x SMB65ssR) are needed, for added rotator protection a second SMB65ssB can be used.

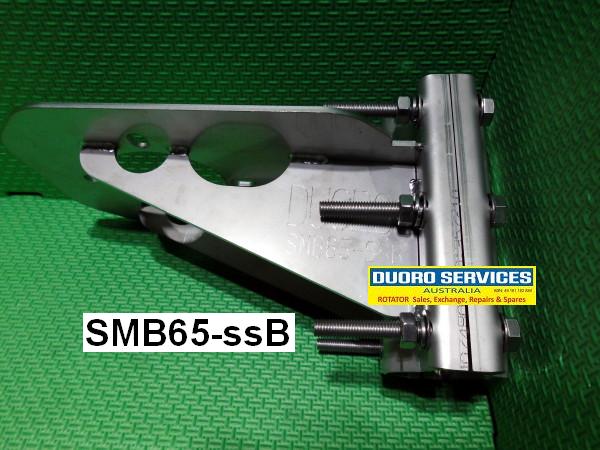

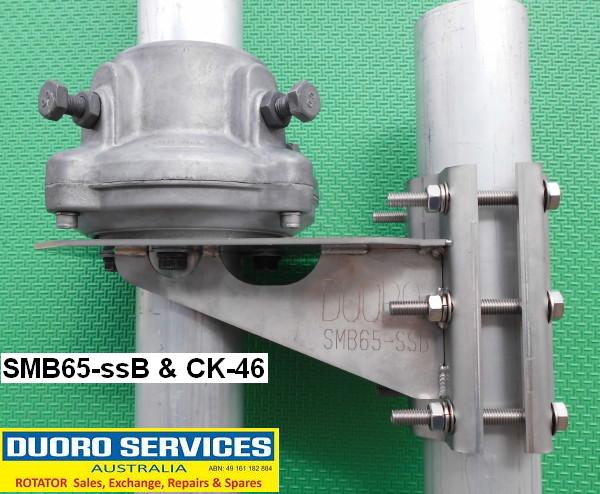

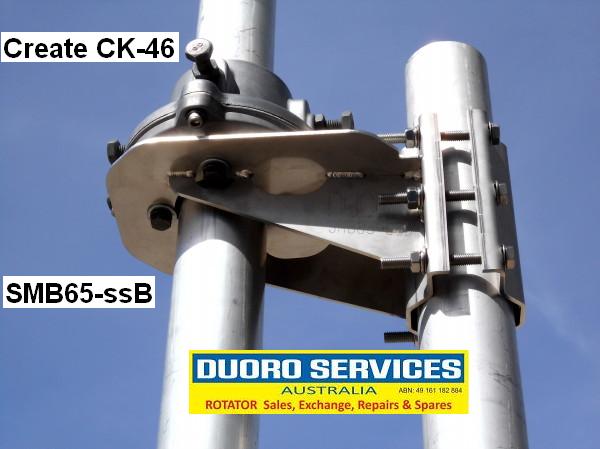

SMB65ssB is for the large Mast Thrush Bearings from Create CK46 & Yaesu GS-65 for pipe mast size 50 to 65mm dia.

MAST BEARING NOT INCLUDED.

Weight 1.82kg.

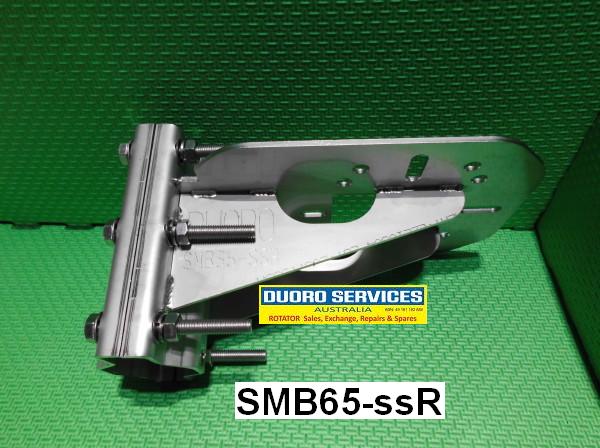

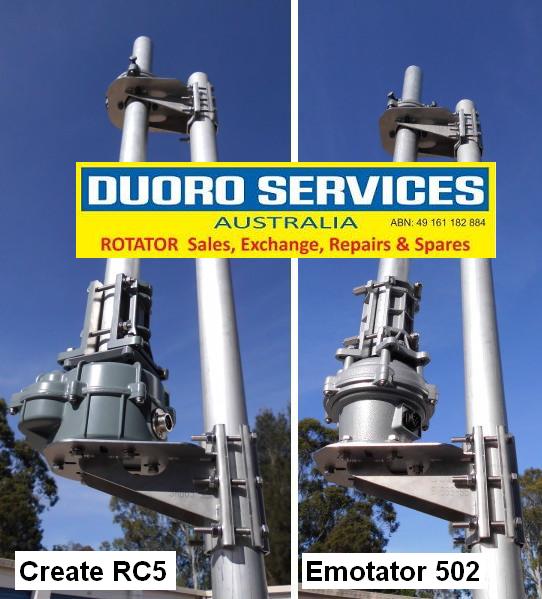

SMB65ssR is for most rotators with a 4 or 6 bolt mounting pattern including:-

CREATE:- RC5 series RC5-1, RC5-1DC, RC5-3/P, RC5A-2, RC5A-3/P, RC5B-3/P, RC5B-4P etc.

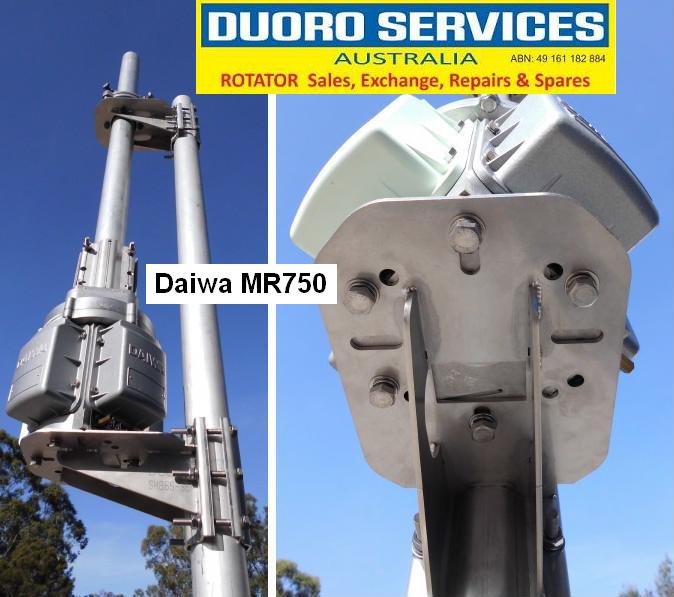

DAIWA:-  DR-7500, DR-7600, MR-750, MR-300 & MR-400.

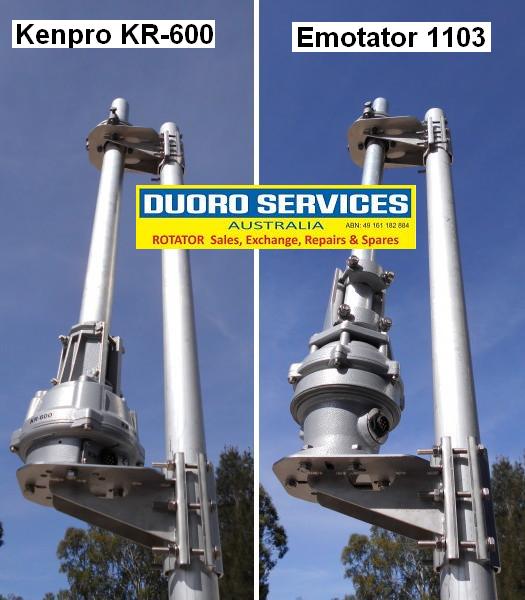

EMOTATOR:-  102, 103, 105, 501, 502, 747, 750, 1100M,1102/3, 1105, 1200 & 1300,1500 etc.

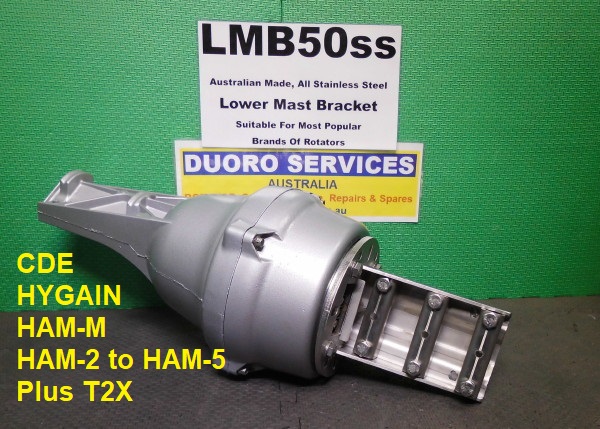

Hy-Gain, CDE etc:- AR-22, AR-40, BT-1, TR-44, CD-44, CD45, Ham-M, Ham-2, Ham-3, Ham-4 & Ham-5 & T2X.

KENPRO:-  KR-400, KR-450XL, KR-600, KR-650, KR-800, KR-1000, KR-2300, KR-2500, KR-2700 & HR-1300 etc.

PST:-  641 & 2051.

YAESU:- G-400,G-450, G-600, G-650, G-800, G-1000, G-2300, G-2500, G-2700 & G-2800 etc.

Weight 1.86kg.

These new versions have longer gussets (165mm) with more lock tabs & spanner holes to make it easier to do up bolts etc.

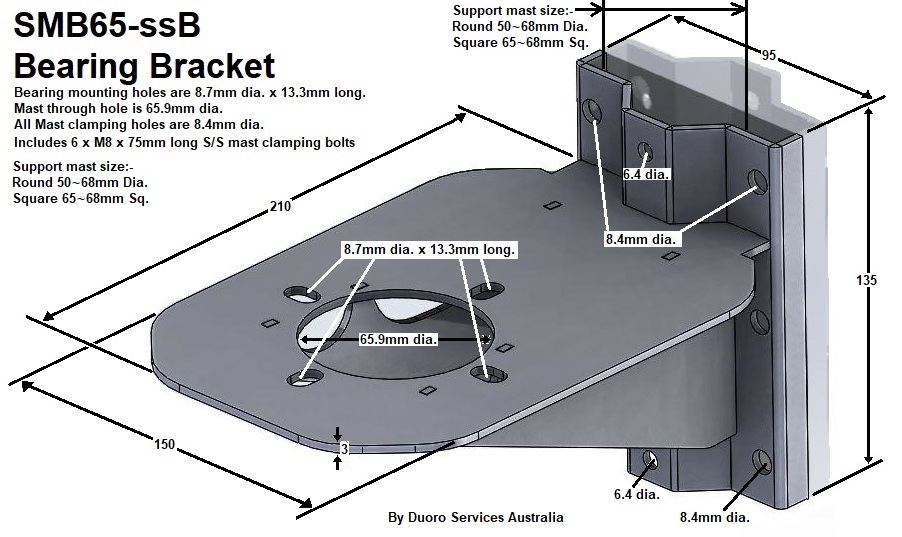

SMB65ssB now has a larger mast hole (66mm) & the gusset are on a angle to miss this hole.

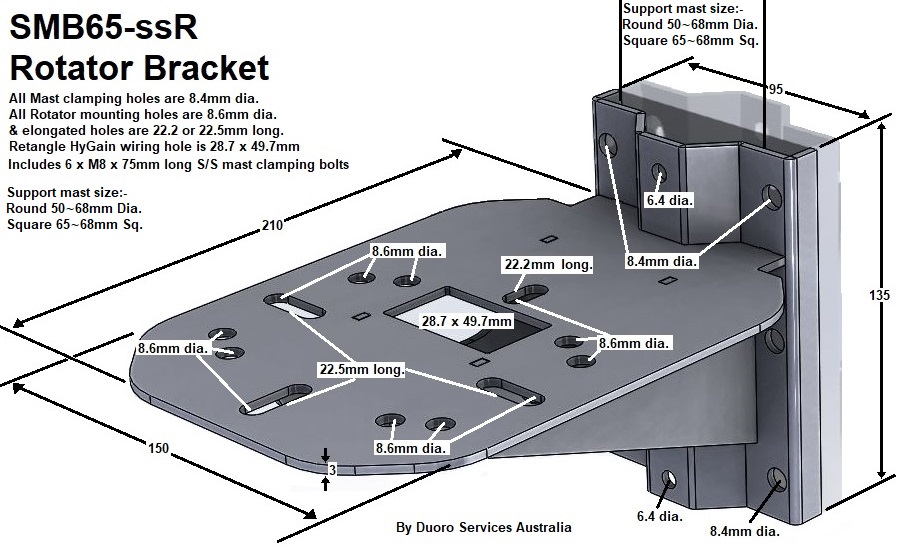

SMB65ssR now is wider (150mm) to accommodate the PST 2051 plus the mounting holes have been adjusted.

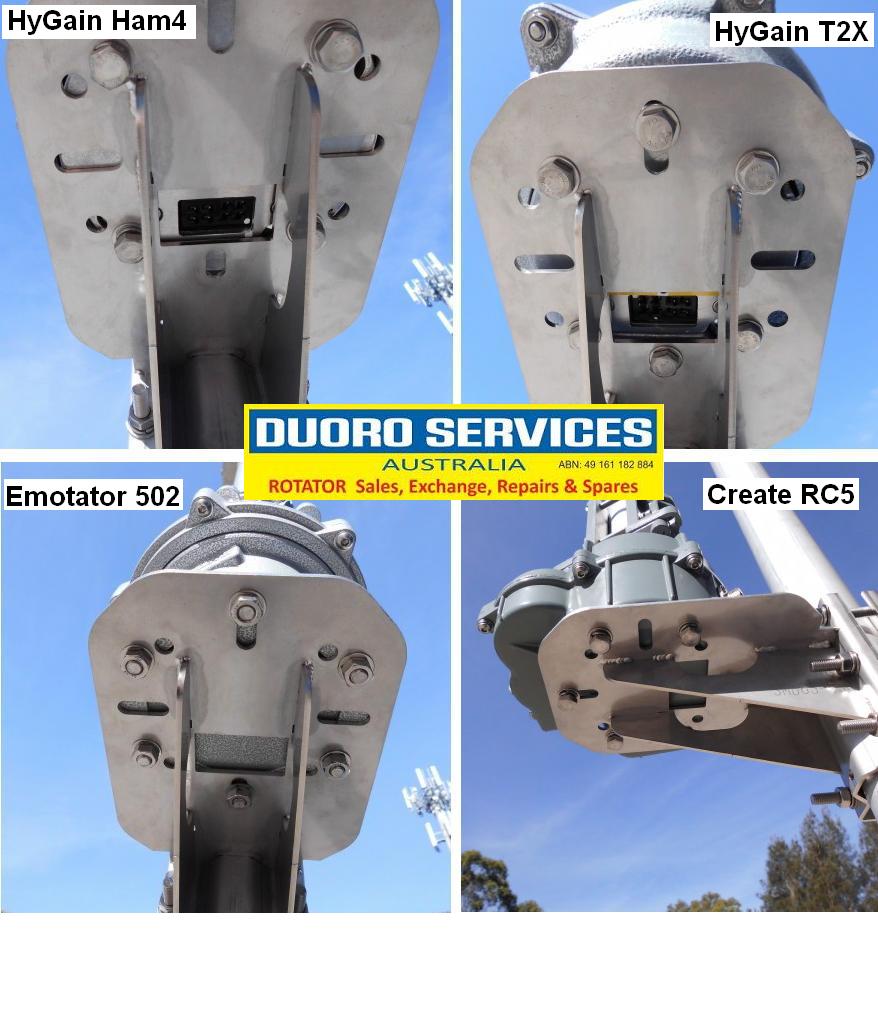

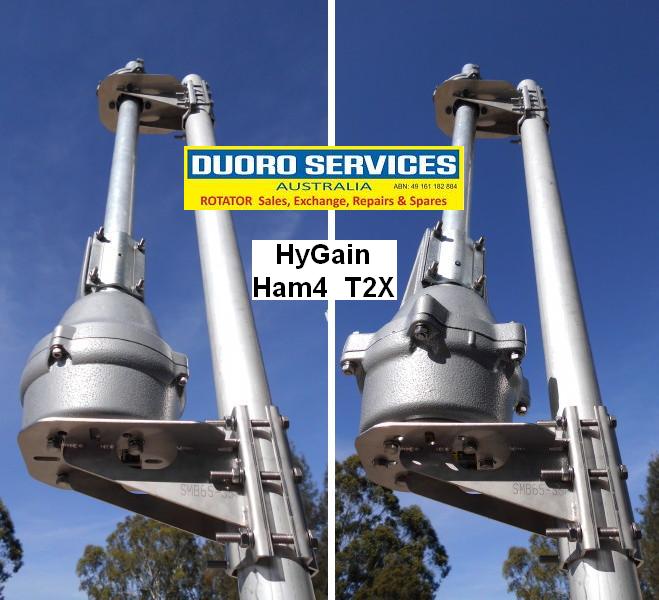

Added new mounting holes & wiring entry for Hy-Gain / CDE Ham series & T2X rotators.

T2X having all 6 mounting holes able to be used.

Added feature :- The centre is now solid to protect  Create Rotators, being all the weight of the mast etc is in the middle of the base of the rotator.

Extra feature :- The adding of the bottom cable entry for HyGain/CDE rotators mean rotator like PST & Kenpro etc with breather holes on the bottom, now have air flow.

NEW PRODUCT

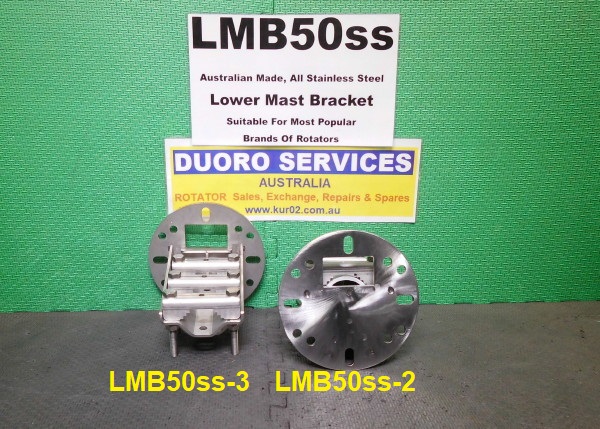

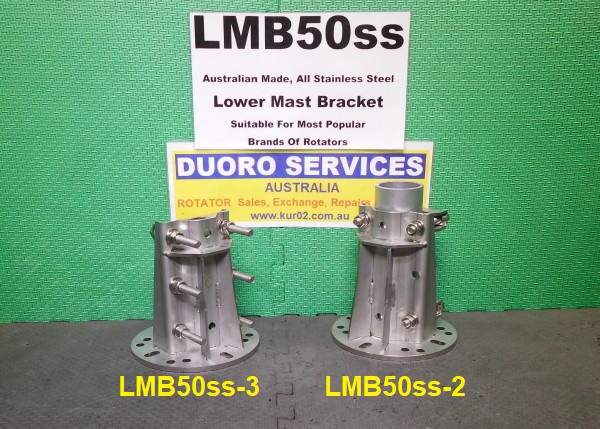

LMB50ss

Lower Mast Bracket

Suitable For Most Popular Brands Of Rotators.

Available in two version, with 2 or 3 mast clamps.

LMB50ss-2

(Qty 4) IN STOCK.        (Each Bracket Is)   $200.00 AUD.

LMB50ss-3

(Qty 4) IN STOCK.         (Each Bracket Is)  $230.00 AUD.

The pics below are of the actual item for sale.

CLICK To View the video on my YouTube Channel

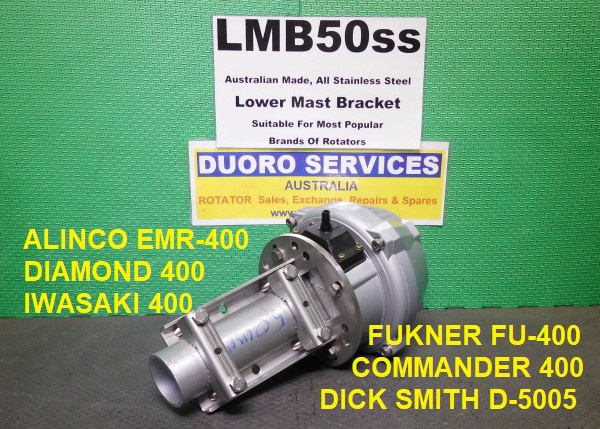

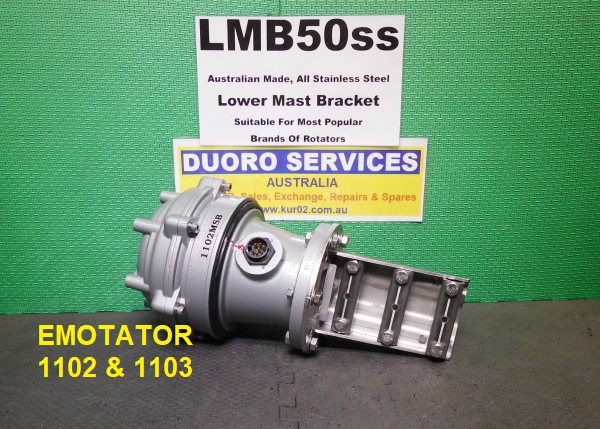

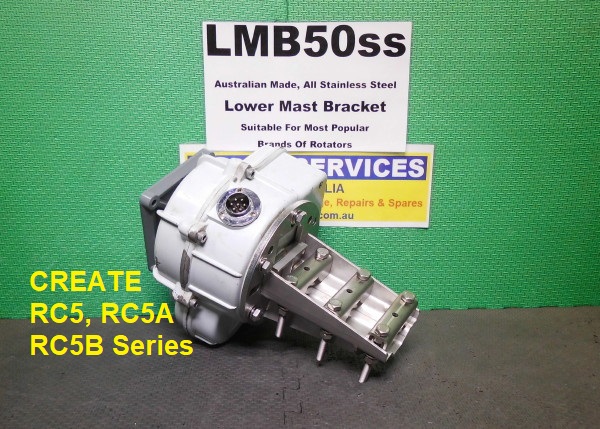

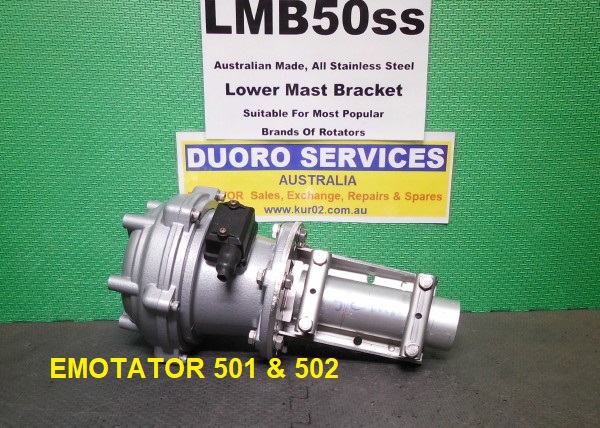

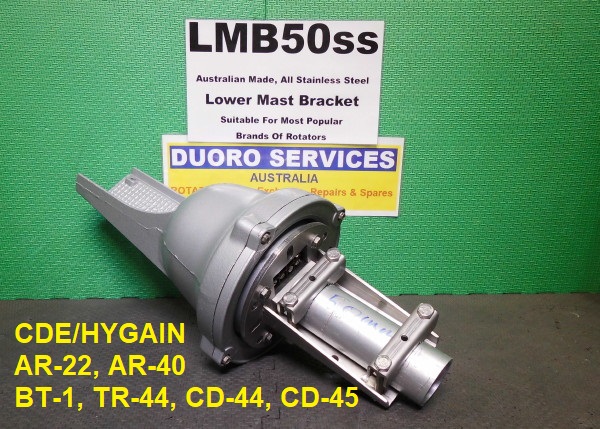

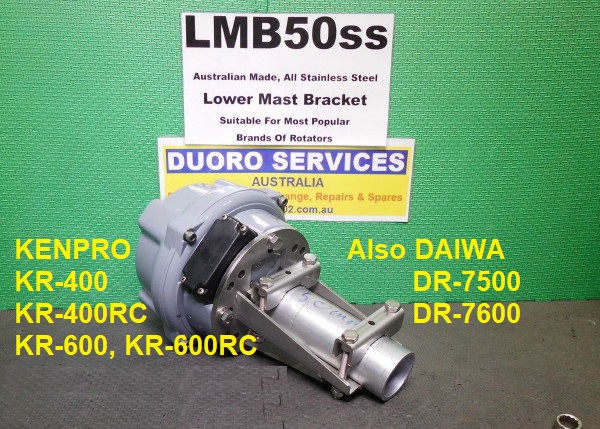

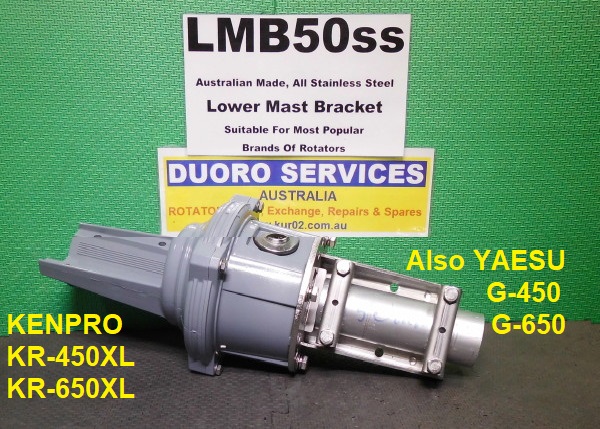

Suitable for most popular brands of rotators with 4 or 6 bolt mounting patterns :- CREATE, CDE/HYGAIN, EMOTATOR, DAIWA, KENPRO & YASEU etc.

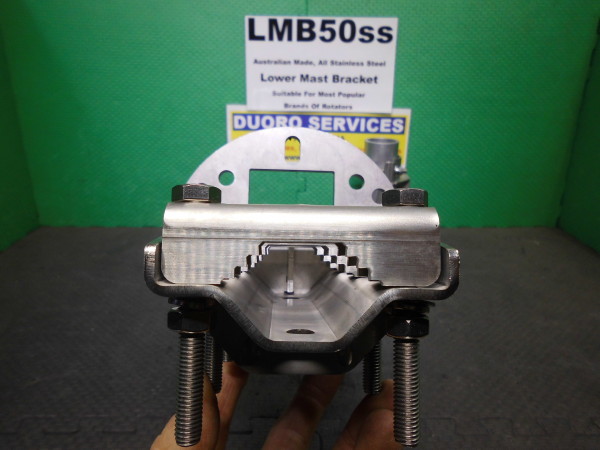

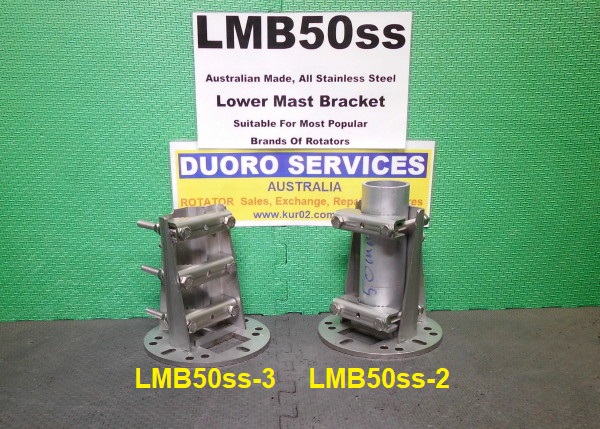

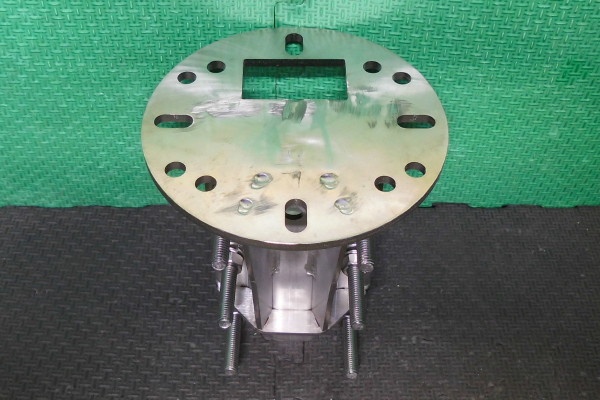

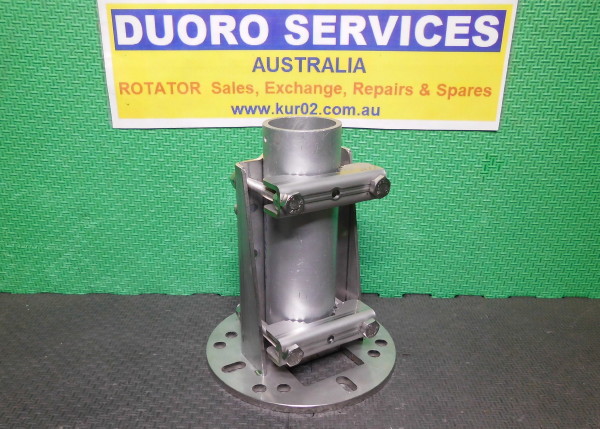

The main body of the LMB50ss is made up of 7 stainless steel pieces which were Laser Cut & the backing has been computer controlled folded. All the parts have interlocking tabs on them, this makes assembly & welding easier.

The base is 5mm thick & has a selection of rotator mounting hole configurations in it, also has a 'T' support bars to keep the mast off base & away from the wiring for the CDE/HYGAIN rotators.

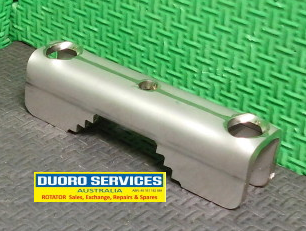

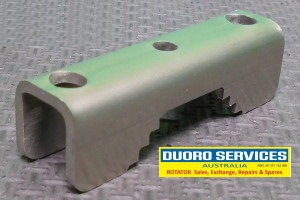

The rest of the LMB-50ss is made from 3mm S/S, including the folded mast clamps which have the M8 x 75mm S/S Hex set screw affixed into them by a lock nut, this prevents bolt from spinning & makes installation easier.

There is also provision to put 2 locking bolts through the top & bottom clamps into the mast & out the back of the bracket.

Includes all clamping hardware.
